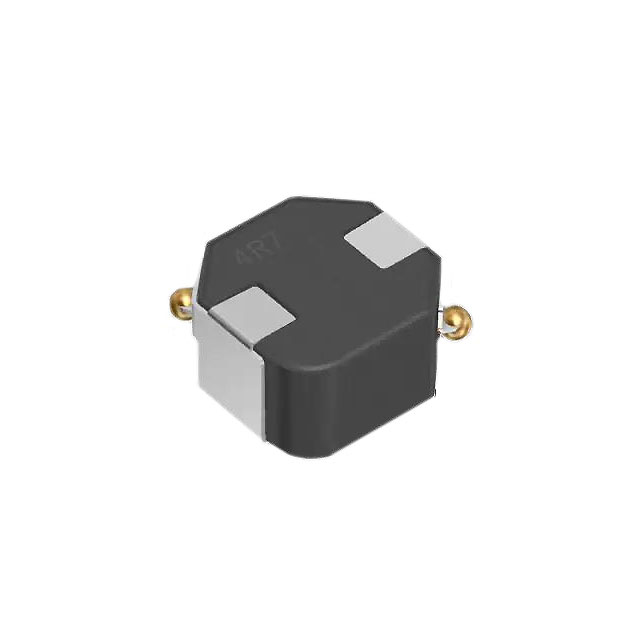

SPM5030VT-R10M-D
ActiveEPCOS - TDK Electronics
GENERAL PURPOSE INDUCTOR, 0.1UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2120, CHIP
Deep-Dive with AI
Search across all available documentation for this part.
SPM5030VT-R10M-D
ActiveEPCOS - TDK Electronics
GENERAL PURPOSE INDUCTOR, 0.1UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2120, CHIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM5030VT-R10M-D |
|---|---|
| Current - Saturation (Isat) | 37.1 A |
| Current Rating (Amps) | 18.3 A |
| DC Resistance (DCR) | 2.7 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 100 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.209 " |
| Size / Dimension [x] | 5.3 mm |
| Size / Dimension [y] | 5.1 mm |
| Size / Dimension [y] | 0.201 " |
| Supplier Device Package | 5030 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
SPM5030VT Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Shielding | Type | Current Rating (Amps) | Inductance Frequency - Test | Mounting Type | Inductance | Height - Seated (Max) | Height - Seated (Max) [Max] | Supplier Device Package | Ratings | Current - Saturation (Isat) | Package / Case | Material - Core | Tolerance | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EPCOS - TDK Electronics | 155 °C | -55 °C | 2.7 mOhm | Shielded | Drum Core Wirewound | 18.3 A | 100 kHz | Surface Mount | 100 nH | 3 mm | 0.118 in | 5030 | AEC-Q200 | 37.1 A | Nonstandard | Metal Composite | 20 % | 0.209 " | 5.3 mm | 5.1 mm | 0.201 " |
EPCOS - TDK Electronics | 155 °C | -55 °C | 14.1 mOhm | Shielded | Drum Core Wirewound | 7.9 A | 100 kHz | Surface Mount | 1.5 µH | 3 mm | 0.118 in | 5030 | AEC-Q200 | 9.2 A | Nonstandard | Metal Composite | 20 % | 0.209 " | 5.3 mm | 5.1 mm | 0.201 " |
EPCOS - TDK Electronics | 155 °C | -55 °C | 59.1 mOhm | Shielded | Drum Core Wirewound | 3.8 A | 100 kHz | Surface Mount | 4.7 ÁH | 3 mm | 0.118 in | 5030 | AEC-Q200 | 5.9 A | Nonstandard | Metal Composite | 20 % | 0.209 " | 5.3 mm | 5.1 mm | 0.201 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 1.06 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 1.26 | ||
| 10 | $ 1.06 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.75 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.60 | |||
| Tape & Reel (TR) | 2000 | $ 0.47 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.20 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.61 | |||
| 1000 | $ 0.40 | |||
Description
General part information
SPM5030VT Series
100 nH Shielded Drum Core, Wirewound Inductor 18.3 A 2.7mOhm Nonstandard
