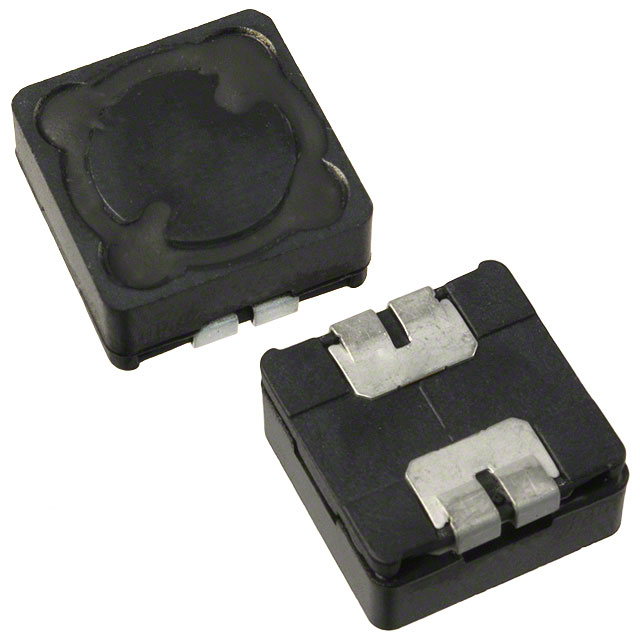

SRR1206-680YL

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, SRR1206 SERIES, 68 H, 15%, SHIELDED, 0.17 OHM, 1.3 A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRR1206-680YL

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, SRR1206 SERIES, 68 H, 15%, SHIELDED, 0.17 OHM, 1.3 A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1206-680YL

Current - Saturation (Isat)	2.2 A
Current Rating (Amps)	1.3 A
DC Resistance (DCR) [Max]	170 mOhm
Frequency - Self Resonant	7 MHz
Height - Seated (Max) [Max] [z]	0.256 in
Height - Seated (Max) [Max] [z]	6.5 mm
Inductance	68 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	2.52 MHz, 18
Shielding	Shielded
Tolerance	15 %
Type	Wirewound, Drum Core

SRR1206 Series

Part	Tolerance	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Current - Saturation (Isat)	Q @ Freq	Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Mounting Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Package / Case	DC Resistance (DCR)
Bourns Inc. SRR1206-680YL	15 %	68 µH	170 mOhm	1.3 A	2.2 A	2.52 MHz 18	Drum Core Wirewound	125 °C	-40 °C	7 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-681KL	10 %	680 µH	1.5 Ohm	400 mA	700 mA	11 796 kHz	Drum Core Wirewound	125 °C	-40 °C	2 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-100ML	20 %	10 µH	35 mOhm	3.3 A	5.7 A	2.52 MHz 18	Drum Core Wirewound	125 °C	-40 °C	18 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-2R5ML	20 %	2.5 µH		6.2 A	10 A	7.96 MHz 19	Drum Core Wirewound	125 °C	-40 °C	30 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard	16 mOhm
Bourns Inc. SRR1206-390YL	15 %	39 µH		1.75 A	3 A	2.52 MHz 23	Drum Core Wirewound	125 °C	-40 °C	9 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard	100 mOhm
Bourns Inc. SRR1206-271KL	10 %	270 µH	520 mOhm	650 mA	1.1 A	11 796 kHz	Drum Core Wirewound	125 °C	-40 °C	3.5 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-330YL	15 %	33 µH	90 mOhm	1.9 A	3.1 A	2.52 MHz 21	Drum Core Wirewound	125 °C	-40 °C	9 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-470YL	15 %	47 µH	130 mOhm	1.6 A	2.5 A	2.52 MHz 22	Drum Core Wirewound	125 °C	-40 °C	7 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-331KL	10 %	330 µH	660 mOhm	600 mA	1 A	11 796 kHz	Drum Core Wirewound	125 °C	-40 °C	3 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard
Bourns Inc. SRR1206-121YL	15 %		260 mOhm	1 A	1.8 A	13 796 kHz	Drum Core Wirewound	125 °C	-40 °C	5 MHz	Surface Mount	Ferrite	0.256 in	6.5 mm	Shielded	Nonstandard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.88
		10	$ 0.72
		100	$ 0.60
	Digi-Reel®	1	$ 0.88
		10	$ 0.72
		100	$ 0.60
	Tape & Reel (TR)	600	$ 0.51
		1200	$ 0.48
		1800	$ 0.47
		3000	$ 0.45
		4200	$ 0.43
		6000	$ 0.42
		15000	$ 0.41
Newark	Each (Supplied on Cut Tape)	1	$ 1.22
		10	$ 0.91
		25	$ 0.85
		50	$ 0.79
		100	$ 0.72

Description

General part information

SRR1206 Series

68 µH Shielded Drum Core, Wirewound Inductor 1.3 A 170mOhm Max Nonstandard
