EN3P4MX
ActiveSwitchcraft Inc.

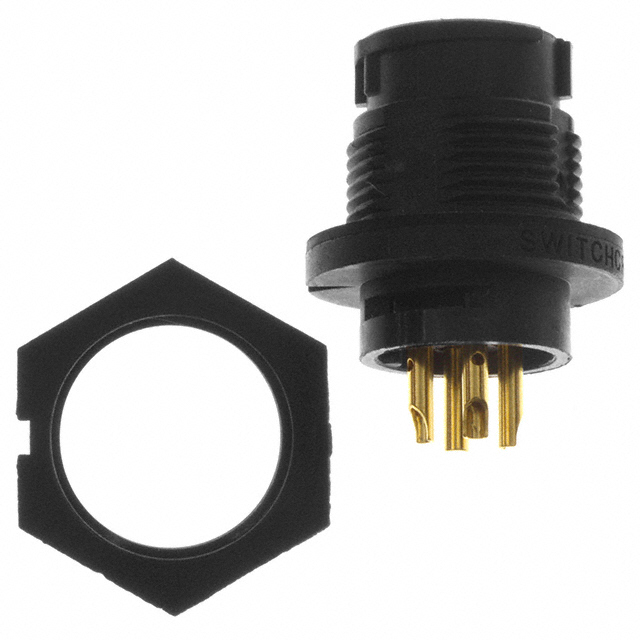

CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P4MX
ActiveSwitchcraft Inc.
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P4MX | EN3P4M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp, Circuit Board, Solder, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P4M Series
CONN RCPT MALE 4POS GOLD CRIMP
| Part | Ingress Protection | Connector Type | Fastening Type | Primary Material | Current Rating (Amps) | Orientation | Number of Positions | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Material Flammability Rating | Contact Material | Termination | Voltage Rating | Applications | Color | Mounting Feature | Insert Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P4MCKX | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 7.5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | Crimp | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | |
Switchcraft Inc. EN3P4MRAPCBW | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | Circuit Board, Solder | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P4MKX | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 7.5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | ||
Switchcraft Inc. EN3P4MX | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 7.5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | ||
Switchcraft Inc. EN3P4MCX | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 7.5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | Crimp | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | |
Switchcraft Inc. EN3P4MRAPCBN | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | Circuit Board, Solder | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P4MRAPCX | IP66/IP68 | Male Pins, Receptacle | Bayonet Lock | Plastic | 5 A | Keyed | 4 | Unshielded | 65 °C | -40 °C | Gold | UL94 V-0 | Copper Alloy | Solder | 250 VAC | General Purpose, Instrumentation, Marine, Medical | Black | Bulkhead - Front Side Nut | Elastomer | Panel Mount, Right Angle, Through Hole |
