EVAL-KXCJ9-1008

Obsolete

Kionix Inc.

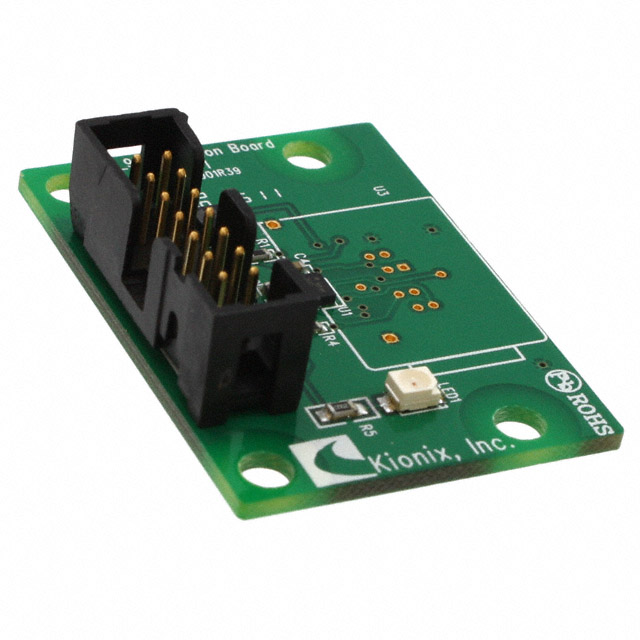

EVAL BOARD FOR KXCJ9-1008

Search across all available documentation for this part.

Obsolete

Kionix Inc.

EVAL BOARD FOR KXCJ9-1008

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EVAL-KXCJ9-1008	KXCJ9 Series

Acceleration Range	-	4 - 8 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	0.39 Hz
Bandwidth	-	800 Hz
Features	-	Selectable Low Pass Filter, Adjustable Bandwidth
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C
Package / Case	-	10-VFLGA
Sensing Range	2 g, 4 g, 8 g	2 - 8 g
Sensitivity (LSB/g)	-	1024 LSB/g
Sensor Type	Accelerometer, 3 Axis	Accelerometer, 3 Axis
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	10-LGA (3x3)
Type	-	Digital
Utilized IC / Part	KXCJ9-1008	KXCJ9-1008
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.71 V	1.71 V

ACCELEROMETER 2-8G I2C 10LGA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Min]	Bandwidth [Max]	Axis [z]	Axis [y]	Axis [x]	Features	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Sensitivity (LSB/g)	Mounting Type	Package / Case	Supplier Device Package	Sensor Type	Supplied Contents	Sensing Range	Utilized IC / Part
Kionix Inc. KXCJ9-1008-FR	85 °C	-40 °C	0.39 Hz	800 Hz	Z	Y	X	Adjustable Bandwidth, Selectable Low Pass Filter	4 g, 8 g	-2 g	2 g	Digital	3.6 V	1.71 V	I2C	1024 LSB/g	Surface Mount	10-VFLGA	10-LGA (3x3)
Kionix Inc. KXCJ9-1008-PR	85 °C	-40 °C	0.39 Hz	800 Hz	Z	Y	X	Adjustable Bandwidth	4 g, 8 g	-2 g	2 g	Digital	3.6 V	1.71 V	I2C	1024 LSB/g	Surface Mount	10-VFLGA	10-LGA (3x3)
Kionix Inc. EVAL-KXCJ9-1008													3.6 V	1.71 V						Accelerometer, 3 Axis	Board(s)	2 g, 4 g, 8 g	KXCJ9-1008

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

KXCJ9-1008 - Accelerometer, 3 Axis Sensor Evaluation Board

Technical documentation and resources

No documents available
