A75592-001
ActiveOmnetics

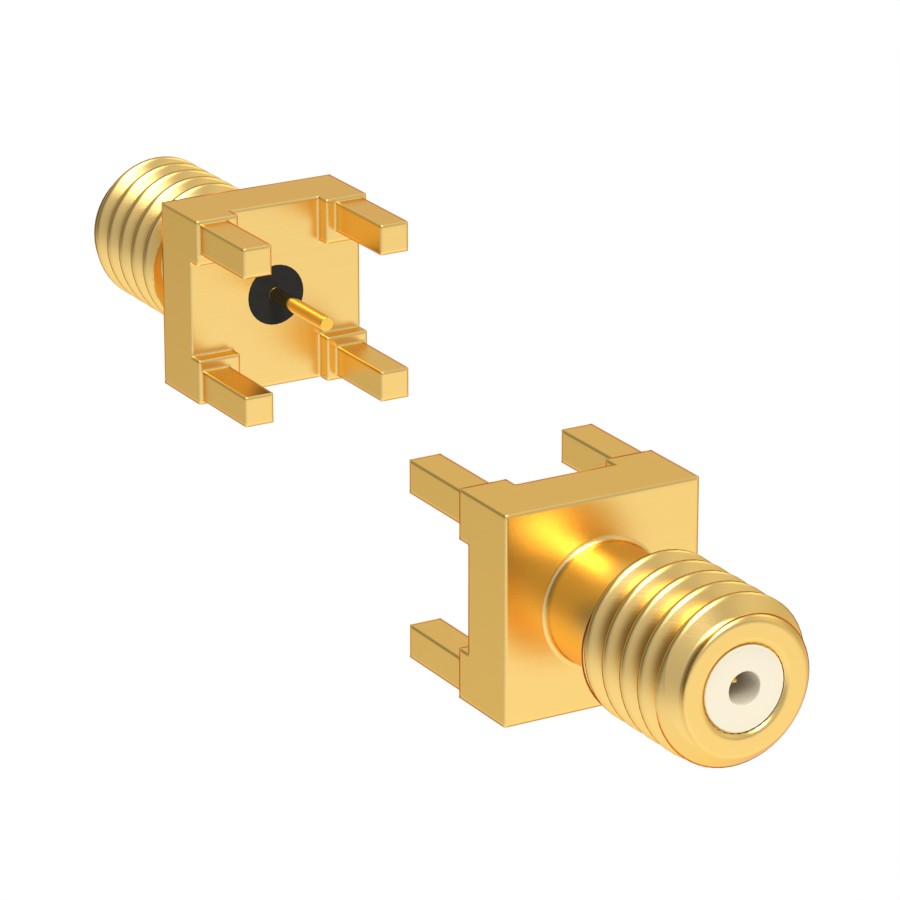

NANO COAX, 50 OHM, MALE BOARD MO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A75592-001
ActiveOmnetics
NANO COAX, 50 OHM, MALE BOARD MO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A75592-001 |
|---|---|
| Body Finish | Gold |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Coaxial |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Frequency - Max [Max] | 10 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 2000 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 55.85 | |
| 10 | $ 43.28 | |||
| 25 | $ 39.29 | |||
| 50 | $ 36.60 | |||
| 100 | $ 34.17 | |||
| 250 | $ 31.30 | |||
Description
General part information
CXP-01-DD Series
Coaxial Connector Plug, Male Pin 50 Ohms Through Hole Solder
