96-9574-9525

Active

Kester Solder

K100LD 3.3%/268 .025 500 G ROBO

Search across all available documentation for this part.

Active

Kester Solder

K100LD 3.3%/268 .025 500 G ROBO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

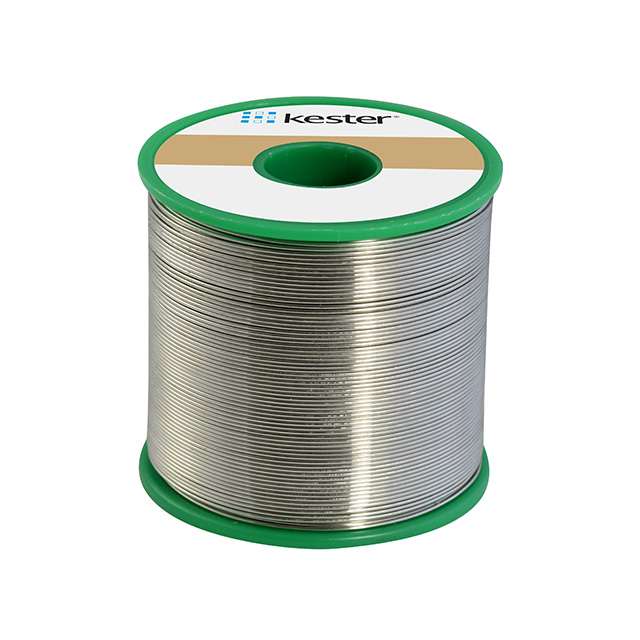

Lead Free No-Clean Wire Solder Sn99.3Cu0.7 (99.3/0.7) 22 AWG, 23 SWG Spool, 17.64 oz (500g)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	96-9574-9525	96-9574 Series

Composition	Sn99.3Cu0.7 (99.3/0.7)	Sn99.3Cu0.7 (99.3/0.7)
Diameter	-	0.015 - 0.04 in
Diameter	-	0.38 - 1.02 mm
Flux Type	No-Clean	No-Clean
Form	Spool	Spool
Form	17.64 oz, 500 g	17.64 - 500 oz
Melting Point [custom]	441 °F	441 °F
Melting Point [custom]	227 °C	227 °C
Shelf Life	36 Months	36 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	40 °C	40 °C
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Wire Solder	Wire Solder
Wire Gauge	23 SWG, 22 AWG	20 AWG, 22 SWG, 23 SWG, 22 AWG
Wire Gauge	-	18 - 28 AWG

K100LD 3.3%/268 .015 500 G ROBO

Part	Wire Gauge	Shelf Life Start	Form	Form	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Melting Point [custom]	Melting Point [custom]	Flux Type	Composition	Type	Diameter [diameter]	Diameter [diameter]	Shelf Life	Wire Gauge
Kester Solder 96-9574-9515	27 AWG, 28 SWG	Date of Manufacture	Spool	17.64 oz, 500 g	10 °C	40 °C	441 °F	227 °C	No-Clean	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	0.015 in	0.38 mm	36 Months
Kester Solder 96-9574-9531		Date of Manufacture	Spool	17.64 oz, 500 g	10 °C	40 °C	441 °F	227 °C	No-Clean	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder			36 Months	20 AWG, 22 SWG
Kester Solder 96-9574-9540	18 AWG, 19 SWG	Date of Manufacture	Spool	17.64 oz, 500 g	10 °C	40 °C	441 °F	227 °C	No-Clean	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	0.04 in	1.02 mm	36 Months
Kester Solder 96-9574-9520	24 AWG, 25 mmý	Date of Manufacture	Spool	17.64 oz, 500 g	10 °C	40 °C	441 °F	227 °C	No-Clean	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder	0.02 in	0.51 mm	36 Months
Kester Solder 96-9574-9525		Date of Manufacture	Spool	17.64 oz, 500 g	10 °C	40 °C	441 °F	227 °C	No-Clean	Sn99.3Cu0.7 (99.3/0.7)	Wire Solder			36 Months	22 AWG, 23 SWG
