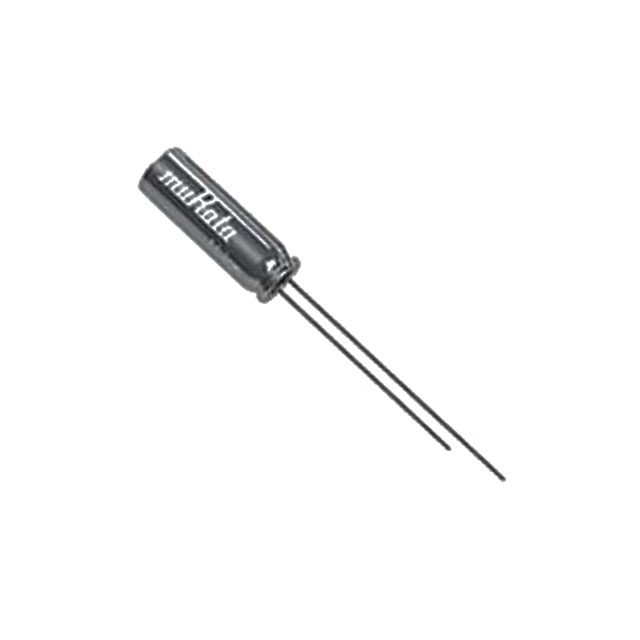

UMAC040130A003TA01

Obsolete

Murata Power Solutions Inc.

CAP 10F 2.3V THROUGH HOLE

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

CAP 10F 2.3V THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	UMAC040130A003TA01

Capacitance	10 F
ESR (Equivalent Series Resistance)	800 mOhm
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	20 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	4 mm
Size / Dimension [diameter]	0.157 in
Termination	PC Pins
Voltage - Rated	2.3 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Termination	ESR (Equivalent Series Resistance)
Murata Power Solutions Inc. UMAC040130A003TA01	4 mm	0.157 in	2.3 V	Through Hole	Radial Can	70 °C	20 °C	12 mm	0.472 "	10 F	PC Pins	800 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 F (EDLC) Supercapacitor 2.3 V Radial, Can 800mOhm
