170381-1
ActiveTE Connectivity Raychem Cable Protection
PL .312 REC AV 0.5-2 MM2 PRE-TPBR
Deep-Dive with AI
Search across all available documentation for this part.
170381-1
ActiveTE Connectivity Raychem Cable Protection
PL .312 REC AV 0.5-2 MM2 PRE-TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 170381-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 0.134 in |
| Insulation Diameter [Max] [diameter] | 3.4 mm |
| Insulation Diameter [Min] [diameter] | 0.087 in |
| Insulation Diameter [Min] [diameter] | 2.21 mm |
| Length - Overall [x] | 0.886 in |
| Length - Overall [x] | 22.5 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.335 in |
| Tab Length | 8.5 mm |
| Tab Thickness | 0.031 " |
| Tab Thickness | 0.79 mm |
| Tab Width | 7.92 mm |
| Tab Width | 0.312 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 288000 | $ 0.08 | ||
Description
General part information
Positive Lock 312 Series

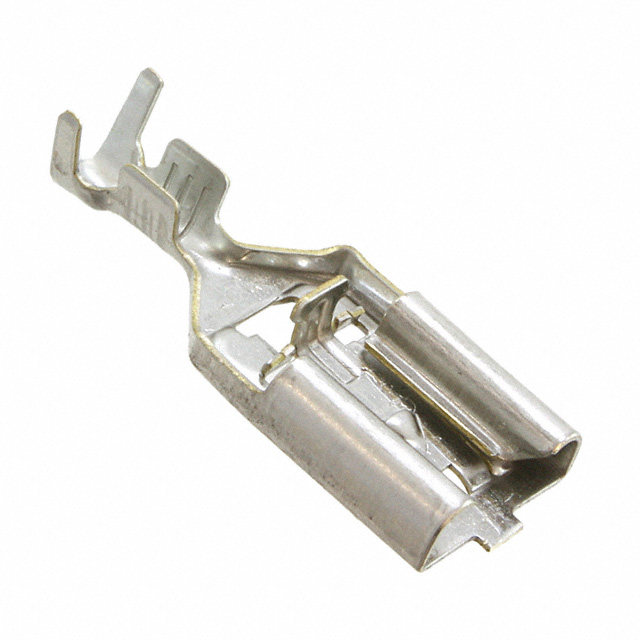

Quick Disconnect Receptacle, 20 – 14 AWG, .51 – 2.08 mm² Wire, 7.92 mm [.312 in] Tab Width, Straight, Brass, Tin Plating, Positive Lock 312
