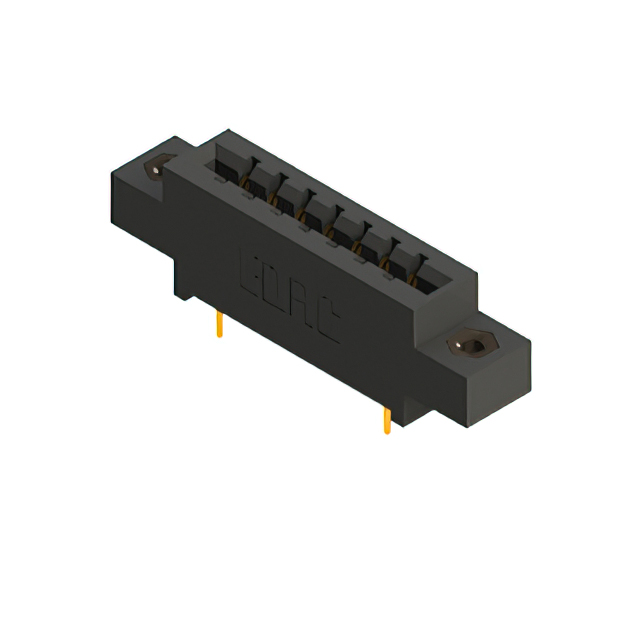

CARD EDGE CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-014-523-808
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 14 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-014-523-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
887-014 Series
...
| Part | Number of Positions | Contact Finish | Termination | Material - Insulation | Termination Rows | Mounting Type | Gender | Contact Material | Contact Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions/Bay/Row [custom] | Card Type | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 14 | Gold | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Dual | 7 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | 125 °C | -40 °C | |||||
EDAC Inc. | 14 | Gold | Solder | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Dual | 7 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 14 | Gold | Solder | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Dual | 7 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 14 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 14 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | |||||
EDAC Inc. | 14 | Gold | Solder | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 14 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 14 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 14 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | ||
EDAC Inc. | 14 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 14 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 14 | Gold | Solder Eyelet(s) | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Dual | 7 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | ||
EDAC Inc. | 14 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 2 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Dual | 7 | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 2 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | ||
EDAC Inc. | 14 | Gold | Wire Wrap | Polyphenylene Sulfide (PPS) | 1 | Through Hole | Female | Copper Alloy | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Single | 14 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | 125 °C | -40 °C | 3.25 mm | 0.128 in |
