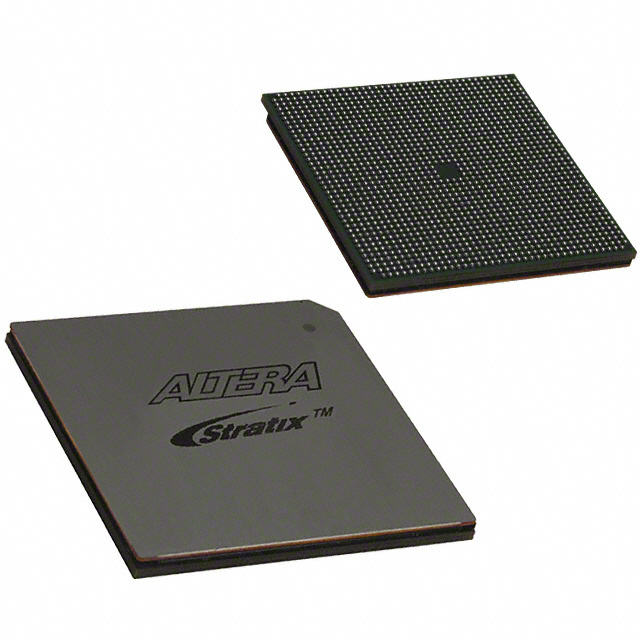

EP1S60F1508C7N

Obsolete

Altera

IC FPGA 1022 I/O 1508FBGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 1022 I/O 1508FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP1S60F1508C7N

Mounting Type	Surface Mount
Number of I/O	1022 I/O
Number of LABs/CLBs	5712
Number of Logic Elements/Cells	57120
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 1508-BBGA
Supplier Device Package	1508-FBGA, FC (40x40)
Total RAM Bits	5215104
Voltage - Supply [Max]	1.575 V
Voltage - Supply [Min]	1.425 V

Part	Operating Temperature [Max]	Number of I/O	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Supplier Device Package	Mounting Type	Package / Case	Number of Logic Elements/Cells	Total RAM Bits
Altera EP1S60F1508C7N	85 °C	1022 I/O	1.575 V	1.425 V	5712	1508-FBGA FC (40x40)	Surface Mount	1508-BBGA FCBGA	57120	5215104
Altera EP1S60F1508C7N	85 °C	1022 I/O	1.575 V	1.425 V	5712	1508-FBGA FC (40x40)	Surface Mount	1508-BBGA FCBGA	57120	5215104
Altera EP1S60F1020C7N	85 °C	773	1.575 V	1.425 V	5712	1020-FBGA (33x33)	Surface Mount	1020-BBGA	57120	5215104

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Stratix® Field Programmable Gate Array (FPGA) IC 1022 5215104 57120 1508-BBGA, FCBGA
