CFB750-300S15

Active

Cincon Electronics Co. LTD

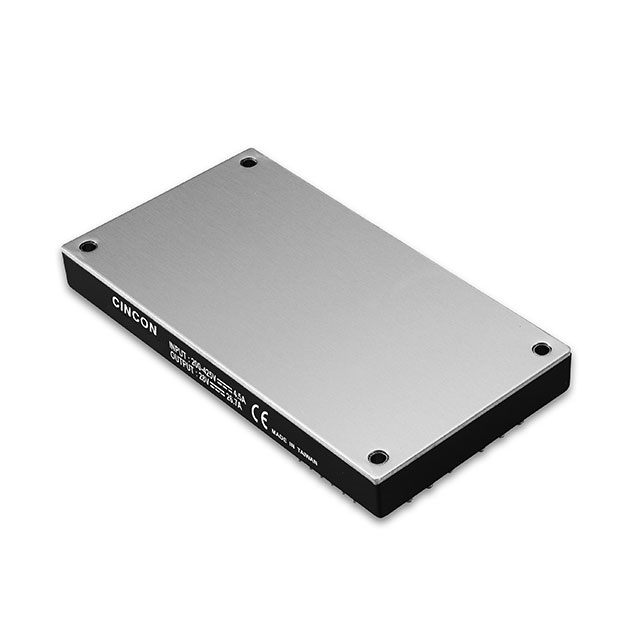

DC DC CONVERTER 15V 750W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFB750-300S15

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 15V 750W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFB750-300S15	CFB750 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	50 A	20.8 - 62.5 A
Efficiency	88 %	88 - 90 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole, Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Full Brick	Full Brick
Power (Watts)	750 W	748 - 750 W
Size / Dimension [x]	4.6 "	4.6 - 9.45 "
Size / Dimension [x]	116.8 mm	116.8 - 240 mm
Size / Dimension [y]	2.4 "	2.4 - 4.33 "
Size / Dimension [y]	61 mm	61 - 110 mm
Size / Dimension [z]	0.5 in	0.5 - 1.65 in
Size / Dimension [z]	12.7 mm	12.7 - 41.9 mm
Standard Number	60950-1	60950-1, 62368-1
Supplier Device Package	Full Brick	Full Brick
Type	Isolated Module	Isolated Module, Enclosed
Voltage - Input (Max) [Max]	425 V	425 V
Voltage - Input (Min) [Min]	200 V	200 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	12 - 48 V

CFB750 Series

DC DC CONVERTER 15V 750W

Part	Approval Agency	Voltage - Input (Min) [Min]	Number of Outputs	Supplier Device Package	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Power (Watts)	Features	Applications	Control Features	Package / Case	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
Cincon Electronics Co. LTD CFB750-300S15	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	15 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	50 A	425 V
Cincon Electronics Co. LTD CFB750-300S28-CMFD	CE	200 V	1		3000 V	80 ¯C	-40 °C	28 V	Chassis Mount	62368-1	1.65 "	9.45 "	240 mm	41.9 mm	4.33 "	110 mm	89 %	748 W		ITE (Commercial)			Enclosed	26.7 A	425 V
Cincon Electronics Co. LTD CFB750-300S12	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	12 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	62.5 A	425 V
Cincon Electronics Co. LTD CFB750-300S36N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	36 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	20.8 A	425 V
Cincon Electronics Co. LTD CFB750-300S24	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	24 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	31.2 A	425 V
Cincon Electronics Co. LTD CFB750-300S28N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	28 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	748 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	26.7 A	425 V
Cincon Electronics Co. LTD CFB750-300S15N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	15 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	50 A	425 V
Cincon Electronics Co. LTD CFB750-300S12N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	12 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	62.5 A	425 V
Cincon Electronics Co. LTD CFB750-300S48	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	48 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module		425 V
Cincon Electronics Co. LTD CFB750-300S24N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	24 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	31.2 A	425 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 290.00

Description

General part information

CFB750 Series

Isolated Module DC DC Converter 1 Output 15V 50A 200V - 425V Input
