ActiveMULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 14 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Search across all available documentation for this part.
29501 010100
ActiveMULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 14 AWG, 100 FT, 30.48 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29501 010100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 41 |
| Conductor Strand [custom] | 30 AWG |
| Features | Oil Resistant, UV Resistant, Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 15.34 mm |
| Jacket (Insulation) Diameter [diameter] | 0.604 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.854 mm |
| Jacket (Insulation) Thickness | 0.073 in |
| Jacket Color | Black |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Coverage | 100 %, 85 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | Variable Frequency Drive (VFD), Motor Supply |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29501 Series

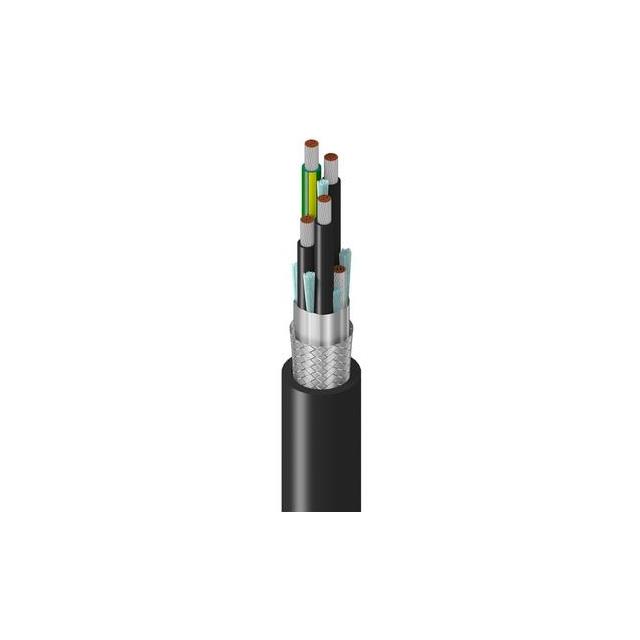

The 29501 010100 is a 4-conductor black shielded flexible Motor Supply Cable with cross-linked polyolefin (XLP) insulation, tinned copper drain wire, tinned copper conductors and PVC jacket. The motor supply cable features DuoFoil® aluminum foil-polyester tape (100% coverage) and tinned copper braid shield (85% coverage). Suitable for variable frequency drive (VFD).
