091032200T
ActiveEssentra Access Solutions

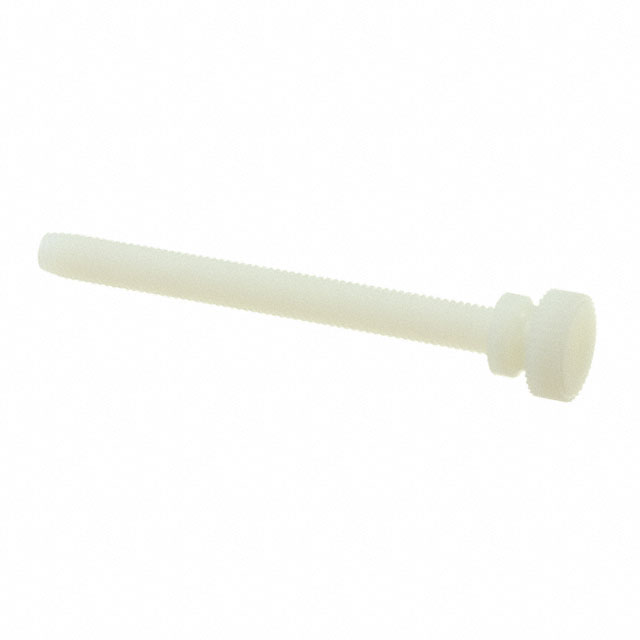

THUMB SCREW KNOB - #10-32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
091032200T
ActiveEssentra Access Solutions
THUMB SCREW KNOB - #10-32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 091032200T |
|---|---|
| Head Diameter [diameter] | 0.425 " |
| Head Diameter [diameter] | 10.8 mm |
| Head Height | 8.26 mm |
| Head Height | 0.325 in |
| Length - Below Head | 2 in |
| Length - Below Head | 50.8 mm |
| Length - Below Head | 2 in |
| Length - Overall | 59.06 mm |
| Length - Overall [x] | 2.325 in |
| Material | Nylon |
| Screw Head Type | Knob |
| Thread Size | #10-32 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 5 | $ 0.20 | |||
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.14 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
Description
General part information
091032200 Series
#10-32 Knob Thumb Screw Drive Nylon
Documents
Technical documentation and resources
