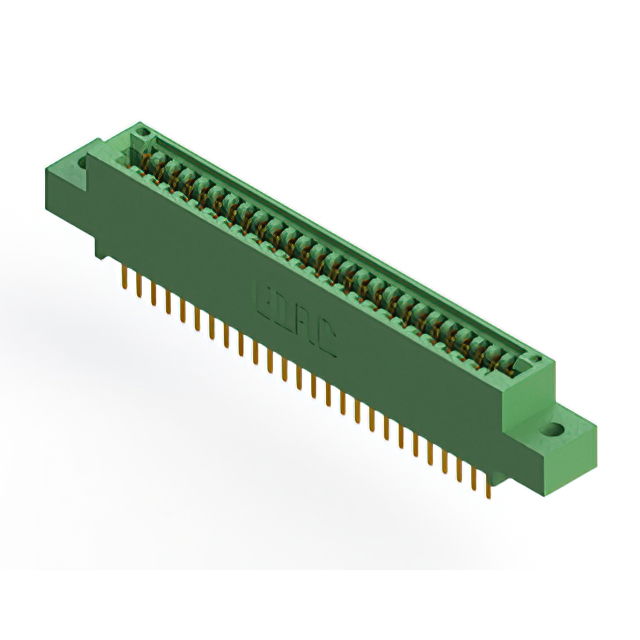

845-052-520-502

Active

EDAC Inc.

CONN EDGE DUAL FMALE 52POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-052-520-502

Active

EDAC Inc.

CONN EDGE DUAL FMALE 52POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-052-520-502

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	52
Number of Positions/Bay/Row [custom]	26
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-052 Series

...

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Card Type	Number of Rows	Contact Material	Read Out	Color	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Flange Feature	Flange Feature	Material - Insulation	Contact Type	Gender	Contact Finish	Termination Rows	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-052-520-502	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26
EDAC Inc. 845-052-559-107	Through Hole Right Angle	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Single Edge	1	Copper Alloy	Single	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	1	52	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-052-500-504	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	Top Mount Opening Unthreaded	0.156 in	3.96 mm
EDAC Inc. 845-052-559-812	Through Hole Right Angle	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	Side Mount Opening Unthreaded
EDAC Inc. 845-052-559-212	Through Hole Right Angle	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 845-052-544-204	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	Flush Mount Top Opening Unthreaded	0.156 in	3.96 mm
EDAC Inc. 845-052-544-812	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	52	3.25 mm	0.128 in	Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	Side Mount Opening Unthreaded
EDAC Inc. 845-052-524-103	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Single Edge	1	Copper Alloy	Single	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	1	52	Floating Bobbin Flush Mount	0.116 in	2.95 mm
EDAC Inc. 845-052-544-107	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Single Edge	1	Copper Alloy	Single	Green	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	1	52	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 845-052-521-507	Through Hole	10 Áin	0.25 Ám	125 °C	-40 °C	2.54 mm	0.1 in	Non Specified - Dual Edge	2	Copper Alloy	Dual	Green	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	52			Diallyl Phthalate (DAP)	Cantilever	Female	Gold	2	26	M3 Threaded Insert Top Mount Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 61.79
Newark	Each	1	$ 71.32
		100	$ 54.95
		250	$ 48.00
		500	$ 41.18
		1000	$ 32.00

Description

General part information

845-052 Series

52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
