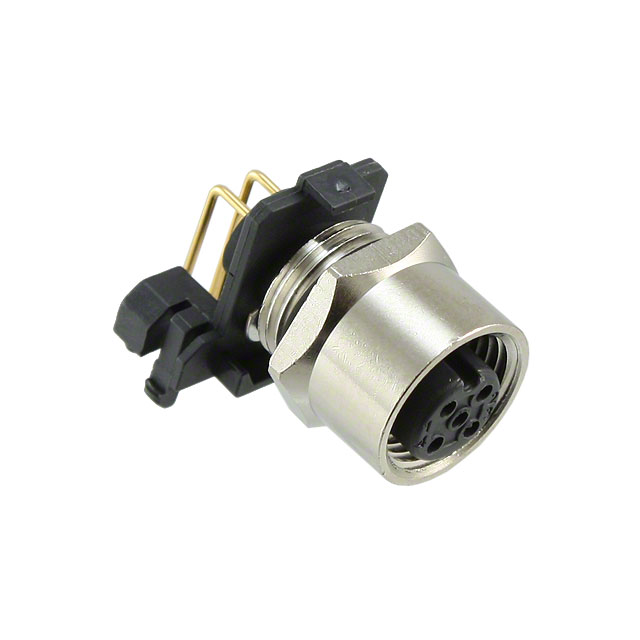

43-01203

Active

Amphenol CONEC

CONN PLUG FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01203

Active

Amphenol CONEC

CONN PLUG FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01203

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

43-0120 Series

Part	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions	Color	Contact Material	Insert Material	Mounting Feature	Mounting Type	Primary Material	Ingress Protection	Shielding	Shell Finish	Orientation	Features	Termination	Connector Type	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Shell Size - Insert
Amphenol CONEC 43-01205	Copper Zinc	-30 ░C	85 °C	Gold	4	Silver	Copper Zinc	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Shielded	Nickel	A	Board Guide Board Lock	Solder	Male Pins Receptacle	UL94 V-0	250 VDC	4 A	M12-4
Amphenol CONEC 43-01201	Copper Zinc	-30 ░C	85 °C	Gold	4	Silver	Copper Zinc	Polyamide (PA66) Nylon 6/6	Bulkhead	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Shielded	Nickel	A	Board Guide Board Lock	Solder	Female Sockets Plug	UL94	250 VDC	4 A	M12-4
Amphenol CONEC 43-01206	Copper Zinc	-30 ░C	85 °C	Gold		Silver	Copper Zinc	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Unshielded	Nickel	A	Board Guide Board Lock	Solder	Male Pins Receptacle	UL94 V-0	60 VDC	4 A	M12-5
Amphenol CONEC 43-01203	Copper Zinc	-30 ░C	85 °C	Gold		Silver	Copper Zinc	Polyamide (PA66) Nylon 6/6	Bulkhead	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Shielded	Nickel	A	Board Guide Board Lock	Solder	Female Sockets Plug	UL94	60 VDC	4 A	M12-5
Amphenol CONEC 43-01200	Copper Zinc	-30 ░C	85 °C	Gold	4	Silver	Copper Zinc	Polyamide (PA66) Nylon 6/6	Bulkhead	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Unshielded	Nickel	A	Board Guide Board Lock	Solder	Female Sockets Plug	UL94	250 VDC	4 A	M12-4
Amphenol CONEC 43-01202	Copper Zinc	-30 ░C	85 °C	Gold		Silver	Copper Zinc	Polyamide (PA66) Nylon 6/6	Bulkhead	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Unshielded	Nickel	A	Board Guide Board Lock	Solder	Female Sockets Plug	UL94	60 VDC	4 A	M12-5
Amphenol CONEC 43-01207	Copper Zinc	-30 ░C	85 °C	Gold		Silver	Copper Zinc	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Panel Mount Right Angle Through Hole	Metal	IP67 - Dust Tight Waterproof	Shielded	Nickel	A	Board Guide Board Lock	Solder	Male Pins Receptacle	UL94 V-0	60 VDC	4 A	M12-5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.23
		10	$ 9.40
		25	$ 8.50
		50	$ 7.89
		100	$ 7.34
		250	$ 6.70

Description

General part information

43-0120 Series

5 Position Circular Connector Plug, Female Sockets Solder
