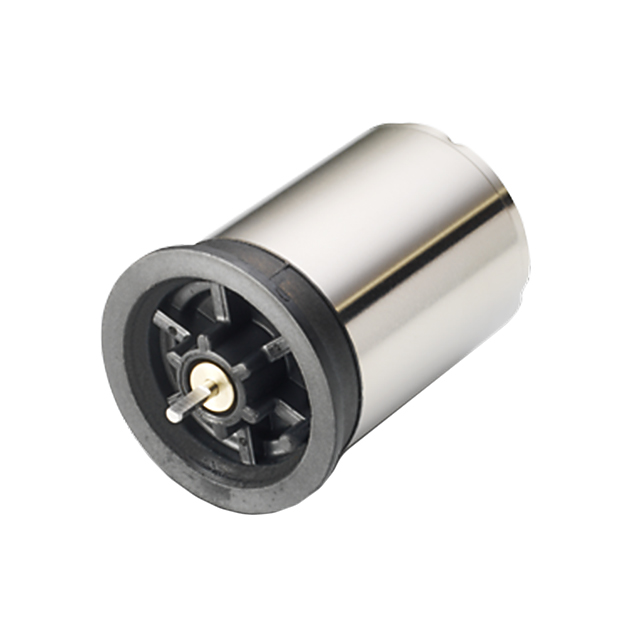

22S28-210P.1

Active

Portescap

STANDARD MOTOR 10000 RPM 12V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

STANDARD MOTOR 10000 RPM 24V

Part	Mounting Hole Spacing	Mounting Hole Spacing	Motor Type	Type	RPM	Function	Voltage - Rated	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Power - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]
Portescap 22S28-205E.1	12 mm	0.472 "	Brushed	DC Motor	10000 RPM	Standard	24 VDC	0.552 oz-in	3.9 mNm	Solder Tab	2.8 W	0.059 in	1.5 mm	7.5 mm	0.295 in	-30 ░C	85 °C	0.108 lb	48.99 g	Round	22 mm	0.866 in
Portescap 22S28-208E.1	12 mm	0.472 "	Brushed	DC Motor	10000 RPM	Standard	15 V	0.552 oz-in	3.9 mNm	Solder Tab	2.8 W	0.059 in	1.5 mm	7.5 mm	0.295 in	-30 ░C	85 °C	0.108 lb	48.99 g	Round	22 mm	0.866 in
Portescap 22S28-210P.1	12 mm	0.472 "	Brushed	DC Motor	10000 RPM	Standard	12 VDC			Solder Tab	2.8 W	0.059 in	1.5 mm	7.5 mm	0.295 in	-30 ░C	85 °C	0.108 lb	48.99 g	Round	22 mm	0.866 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 10000 RPM 2.8W 12VDC

Technical documentation and resources

No documents available
