POWER INDUCTOR (SMD), 400 NH, 14.5 A, SHIELDED, 3600 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
36401C
ActiveMurata Power Solutions Inc.
POWER INDUCTOR (SMD), 400 NH, 14.5 A, SHIELDED, 3600 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 36401C | 36 Series |
|---|---|---|
| - | - | |
| Current Rating (Amps) | 14.5 A | 3.6 - 14.5 A |
| DC Resistance (DCR) | 4 mOhm | 4 - 20 mOhm |
| DC Resistance (DCR) | - | 5 - 41 mOhm |
| Height - Seated (Max) | 4.2 mm | 4.2 mm |
| Height - Seated (Max) [Max] | 0.165 in | 0.165 in |
| Inductance | 400 nH | 1 - 600 µH |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Nonstandard | Nonstandard |
| Shielding | Unshielded | Unshielded |
| Size / Dimension [x] | 6.8 mm | 6.8 mm |
| Size / Dimension [x] | 0.268 in | 0.268 in |
| Size / Dimension [y] | 0.268 in | 0.268 in |
| Size / Dimension [y] | 6.8 mm | 6.8 mm |
| Tolerance | 25 % | 25 % |
| Type | Wirewound | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
36 Series
POWER INDUCTOR (SMD), 4.7 ΜH, 3.6 A, SHIELDED, 3600 SERIES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Tolerance | Inductance | Package / Case | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Type | Shielding | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 36472C | |||||||||||||||||
Murata Power Solutions Inc. 36102C | 125 °C | -40 °C | 7.5 mOhm | 25 % | 1 µH | Nonstandard | 9.5 A | 0.165 in | 4.2 mm | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | Surface Mount | Wirewound | Unshielded | |
Murata Power Solutions Inc. 36332C | |||||||||||||||||
Murata Power Solutions Inc. 36182C | |||||||||||||||||
Murata Power Solutions Inc. 36332C | 125 °C | -40 °C | 25 % | 3.3 µH | Nonstandard | 4.6 A | 0.165 in | 4.2 mm | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | Surface Mount | Wirewound | Unshielded | 35 mOhm | |
Murata Power Solutions Inc. 36102C | |||||||||||||||||
Murata Power Solutions Inc. 36401C | 125 °C | -40 °C | 4 mOhm | 25 % | 400 nH | Nonstandard | 14.5 A | 0.165 in | 4.2 mm | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | Surface Mount | Wirewound | Unshielded | |
Murata Power Solutions Inc. 36601C | 125 °C | -40 °C | 25 % | 600 nH | Nonstandard | 12.5 Amps | 0.165 in | 4.2 mm | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | Surface Mount | Wirewound | Unshielded | 5 mOhm | |
Murata Power Solutions Inc. 36232C | 125 °C | -40 °C | 20 mOhm | 25 % | 2.3 µH | Nonstandard | 6 A | 0.165 in | 4.2 mm | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | Surface Mount | Wirewound | Unshielded | |
Murata Power Solutions Inc. 36601C |
Description
General part information
36 Series

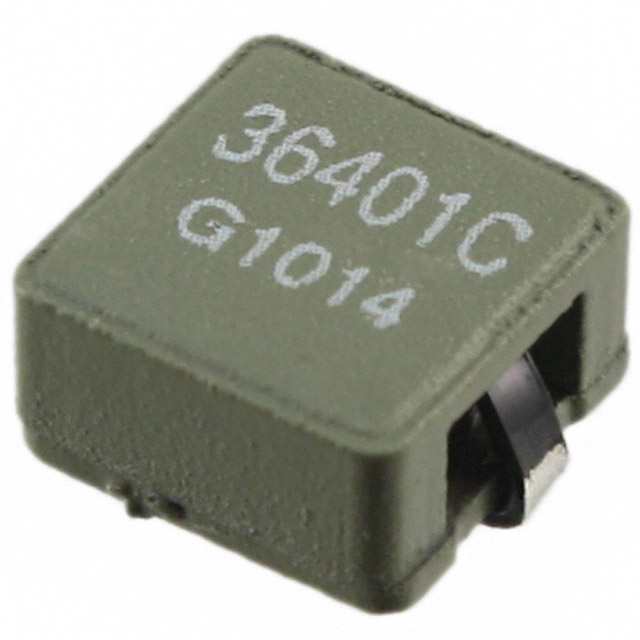

400 nH Unshielded Wirewound Inductor 14.5 A 4mOhm Max Nonstandard
