1241.6664.1112000

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 100MA 30V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 100MA 30V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

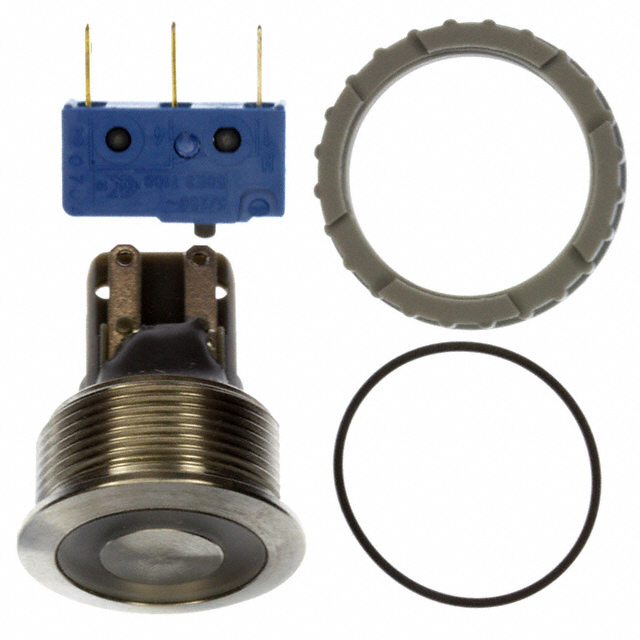

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1241.6664.1112000	1241.6664 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	100 mA	5 - 100 mA
Electrical Life	200000 Cycles	200000 Cycles
Illumination Type, Color	LED, Green	Red, LED, Green, Blue
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm	30.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSHBUTTON SPDT 100MA 30V

Part	Switch Function	Termination Style	Illumination Type, Color	Mounting Type	Actuator Marking	Actuator Type	Electrical Life	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Circuit	Type	Mechanical Life	Voltage Rating - AC
SCHURTER Inc. 1241.6664.1111000	On-Mom	Quick Connect - 0.110" (2.8mm)	LED, Red	Panel Mount, Front	No Marking	Button, Flush, Round	200000 Cycles	IP40	-25 °C	85 °C	100 mA	30 V	Silver	24 V	30.1 mm	SPDT	Anti-Vandal, Illuminated	1500000 Cycles
SCHURTER Inc. 1241.6664.1112000	On-Mom	Quick Connect - 0.110" (2.8mm)	Green, LED	Panel Mount, Front	No Marking	Button, Flush, Round	200000 Cycles	IP40	-25 °C	85 °C	100 mA	30 V	Silver	24 V	30.1 mm	SPDT	Anti-Vandal, Illuminated	1500000 Cycles
SCHURTER Inc. 1241.6664.1122000	On-Mom	Quick Connect - 0.110" (2.8mm)	Green, LED	Panel Mount, Front	No Marking	Button, Flush, Round	200000 Cycles	IP40	-25 °C	85 °C	5 A		Silver	24 V	30.1 mm	SPDT	Anti-Vandal, Illuminated	1500000 Cycles	125 V
SCHURTER Inc. 1241.6664.1124000	On-Mom	Quick Connect - 0.110" (2.8mm)	Blue, LED	Panel Mount, Front	No Marking	Button, Flush, Round	200000 Cycles	IP40	-25 °C	85 °C	5 A		Silver	24 V	30.1 mm	SPDT	Anti-Vandal, Illuminated	1500000 Cycles	125 V
SCHURTER Inc. 1241.6664.1121000	On-Mom	Quick Connect - 0.110" (2.8mm)	LED, Red	Panel Mount, Front	No Marking	Button, Flush, Round	200000 Cycles	IP40	-25 °C	85 °C	5 A		Silver	24 V	30.1 mm	SPDT	Anti-Vandal, Illuminated	1500000 Cycles	125 V
