Technical Specifications
Parameters and characteristics for this part
| Specification | L7985A |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching [Max] | 1 MHz |
| Frequency - Switching [Min] | 250 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Supplier Device Package | 8-HSOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 38 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) | 38 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

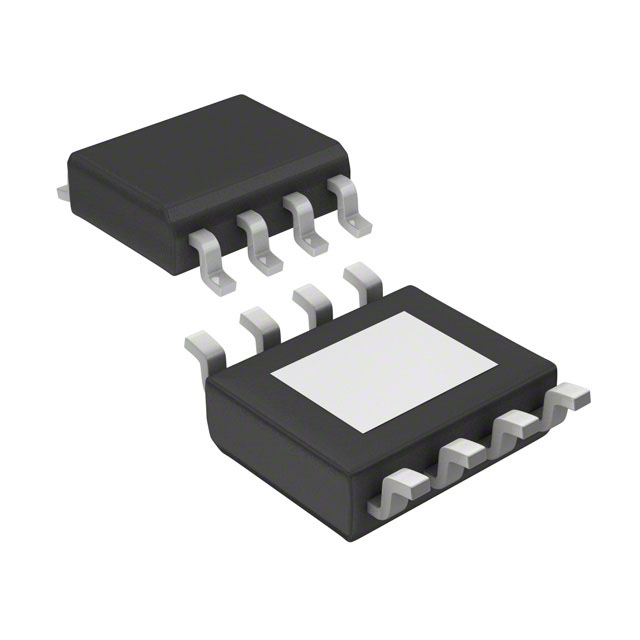

L7985 Series
