Technical Specifications
Parameters and characteristics for this part
| Specification | 88125 0081000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam Fluorinated Ethylene-Propylene (FFEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter | 14.76 mm |
| Jacket (Insulation) Diameter [diameter] | 0.581 in |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF), Plenum |
| Jacket (Insulation) Thickness | 0.483 mm |
| Jacket (Insulation) Thickness | 0.019 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 50 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Usage | Computer |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 88.41 | |
Description
General part information
88125 Series

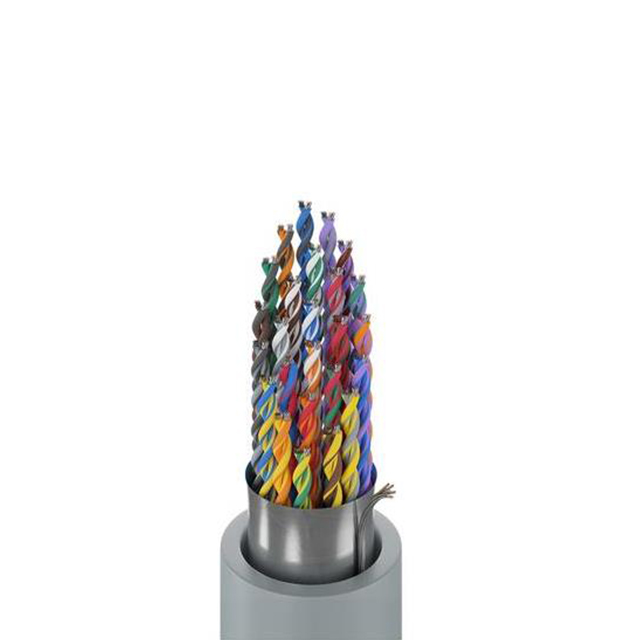

50 (25 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
