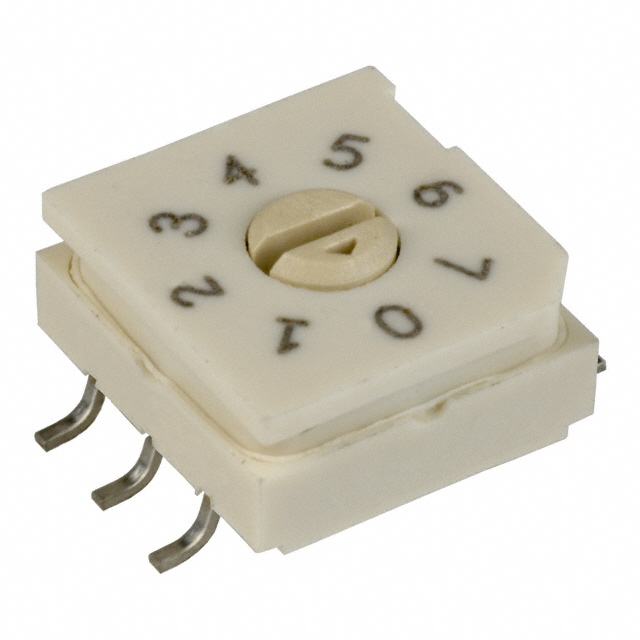

94HAB08WT

Active

Grayhill Inc.

SWITCH ROTARY DIP OCTAL 0.1A 50V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY DIP OCTAL 0.1A 50V

Technical Specifications

Parameters and characteristics commom to parts in this series

Coded Rotary Switches Rotary DIP Switch Flush actuator

Part	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Mechanical Life	Features	Actuator Type	Voltage Rating	Body Material	Contact Finish	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Contact Material	Termination Style	Current Rating (Amps)	Washable	Circuit	Mounting Type
Grayhill Inc. 94HAB08WRT	Flush, Recessed	0.1 in	Full	2.54 mm	8	10000 Steps	Sealed	Rotary for Tool	50 V	Plastic	Gold	0.225 in	5.72 mm	85 °C	-40 °C	0.39 "	9.91 mm	Copper Alloy	Gull Wing	100 mA		Octal	Surface Mount
Grayhill Inc. 94HAB08WT	Flush, Recessed	0.1 in	Full	2.54 mm	8	10000 Steps	Sealed	Rotary for Tool	50 V	Plastic	Gold	0.225 in	5.72 mm	85 °C	-40 °C	0.39 "	9.91 mm	Copper Alloy	Gull Wing	100 mA		Octal	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coded Rotary Switches Rotary DIP Switch Flush actuator
