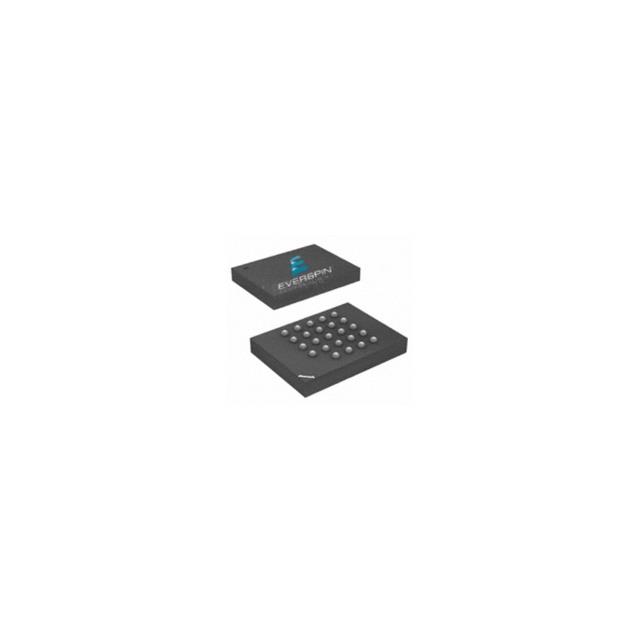

MR10Q010MBR

Active

Everspin Technologies Inc.

IC RAM 1MBIT SPI/QUAD 24BGA

Search across all available documentation for this part.

Active

Everspin Technologies Inc.

IC RAM 1MBIT SPI/QUAD 24BGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MR10Q010MBR	MR10Q010 Series

Access Time	7 ns	7 ns
Clock Frequency	40 MHz	40 MHz
Contents	-	Board(s)
Function	-	MRAM
Interconnect System	-	ST Morpho
Memory Format	RAM	RAM
Memory Interface	Quad I/O, QPI, SPI	Quad I/O, QPI, SPI
Memory Organization	128K x 8	128K x 8
Memory Size	1 Mbit	1 Mbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 - 105 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
Package / Case	24-LBGA	16-SOIC, 24-LBGA
Package / Case	-	0.295 in
Package / Case	-	7.5 mm
Platform	-	Nucleo
Suggested Programming Environment	-	Mbed-Enabled
Supplier Device Package	24-BGA (6x8)	16-SOIC, 24-BGA (6x8)
Technology	MRAM (Magnetoresistive RAM)	MRAM (Magnetoresistive RAM)
Type	-	Memory
Utilized IC / Part	-	MR10Q010
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

IC RAM 1MBIT SPI/QUAD 16SOIC

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Clock Frequency	Package / Case [x]	Package / Case	Package / Case [y]	Memory Format	Access Time	Memory Organization	Memory Interface	Memory Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Supplier Device Package	Suggested Programming Environment	Interconnect System	Type	Function	Utilized IC / Part	Contents	Platform
Everspin Technologies Inc. MR10Q010SCR	Surface Mount	70 °C	0 °C	MRAM (Magnetoresistive RAM)	40 MHz	0.295 in	16-SOIC	7.5 mm	RAM	7 ns	128K x 8	QPI, Quad I/O, SPI	Non-Volatile	3.6 V	3 V	1 Mbit	16-SOIC
Everspin Technologies Inc. MR10Q010-EVAL1																		Mbed-Enabled	ST Morpho	Memory	MRAM	MR10Q010	Board(s)	Nucleo
Everspin Technologies Inc. MR10Q010MBR	Surface Mount	70 °C	0 °C	MRAM (Magnetoresistive RAM)	40 MHz		24-LBGA		RAM	7 ns	128K x 8	QPI, Quad I/O, SPI	Non-Volatile	3.6 V	3 V	1 Mbit	24-BGA (6x8)
Everspin Technologies Inc. MR10Q010MB	Surface Mount	70 °C	0 °C	MRAM (Magnetoresistive RAM)	40 MHz		24-LBGA		RAM	7 ns	128K x 8	QPI, Quad I/O, SPI	Non-Volatile	3.6 V	3 V	1 Mbit	24-BGA (6x8)
Everspin Technologies Inc. MR10Q010VSC	Surface Mount	105 °C	-40 °C	MRAM (Magnetoresistive RAM)	40 MHz	0.295 in	16-SOIC	7.5 mm	RAM	7 ns	128K x 8	QPI, Quad I/O, SPI	Non-Volatile	3.6 V	3 V	1 Mbit	16-SOIC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 6.71

General part information

MRAM (Magnetoresistive RAM) Memory IC 1Mbit SPI - Quad I/O, QPI 40 MHz 7 ns 24-BGA (6x8)
