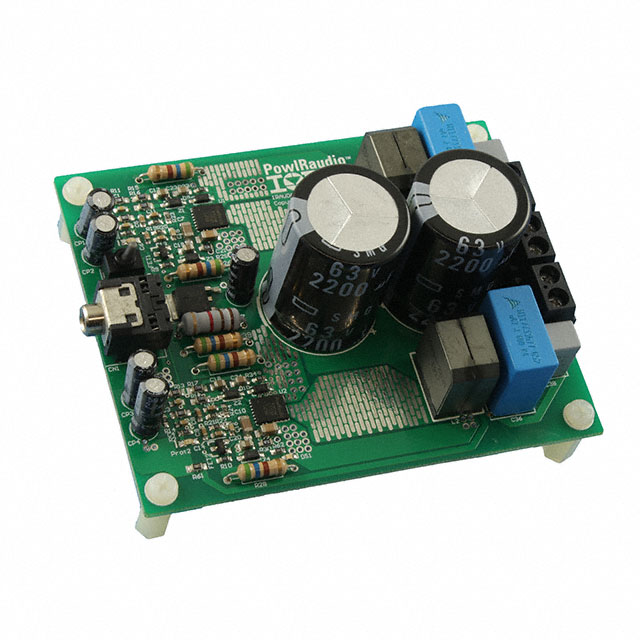

IRAUDAMP19

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 2-CHANNEL 100 W (4 OHMS) HALF-BRIDGE CLASS-D AUDIO POWER AMPLIFIER FEATURING IR4301 WITH SINGLE POWER SUPPLY

Search across all available documentation for this part.

Active

Infineon Technologies

REFERENCE DESIGN BOARD - 2-CHANNEL 100 W (4 OHMS) HALF-BRIDGE CLASS-D AUDIO POWER AMPLIFIER FEATURING IR4301 WITH SINGLE POWER SUPPLY

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP19

Board Type	Fully Populated
Max Output Power x Channels @ Load	2, 100 W
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IR4301
Voltage - Supply [Max]	52 V
Voltage - Supply [Min]	41 V

Part	Supplied Contents	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Board Type	Max Output Power x Channels @ Load
Infineon Technologies IRAUDAMP19	Board(s)	IR4301	52 V	41 V	2-Channel (Stereo)	Fully Populated	2 100 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 200.00

General part information

IR4301 PowIRaudio™ 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
