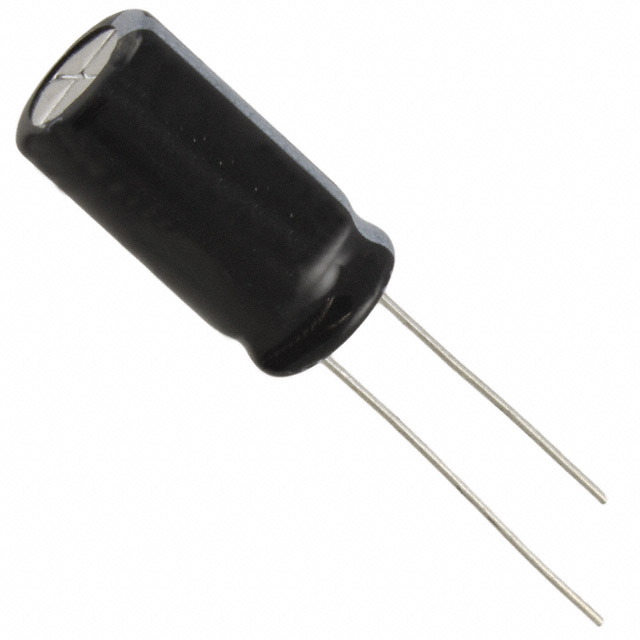

ESW337M050AH4EA

Active

KEMET

CAP ALUM 330UF 20% 50V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 330UF 20% 50V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESW337M050AH4EA

Applications	General Purpose
Capacitance	330 µF
ESR (Equivalent Series Resistance)	58 mOhm
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Impedance	58 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.4 A
Ripple Current @ Low Frequency	700 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Lead Spacing	Lead Spacing	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Ripple Current @ Low Frequency	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Voltage - Rated	Lifetime @ Temp.	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESW337M035AH2AA	5 mm	0.197 in	General Purpose	17 mm	0.669 in	Through Hole	68 mOhm	1.05 A	10 mm	0.394 in	Radial Can	525 mA	20 %	330 µF	-40 °C	105 ░C	Polar	35 V	5000 Hrs
KEMET ESW337M035AG6AA	3.5 mm	0.138 in	General Purpose	22 mm	0.866 in	Through Hole	65 mOhm	1.21 A	8 mm	0.315 "	Radial Can	605 mA	20 %	330 µF	-40 °C	105 ░C	Polar	35 V	5000 Hrs
KEMET ESW337M050AH4EA	5 mm	0.197 in	General Purpose	21 mm	0.827 "	Through Hole	58 mOhm	1.4 A	10 mm	0.394 in	Radial Can	700 mA	20 %	330 µF	-40 °C	105 ░C	Polar	50 VDC	5000 Hrs	58 mOhms
KEMET ESW337M016AG3AA	3.5 mm	0.138 in	General Purpose			Through Hole	130 mOhm	640 mA	8 mm	0.315 "	Radial Can	320 mA	20 %	330 µF	-40 °C	105 ░C	Polar	16 V	4000 Hrs	117 mOhms	0.492 in	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 58mOhm @ 100kHz 5000 Hrs @ 105°C
