245015064100863+

Active

KYOCERA AVX

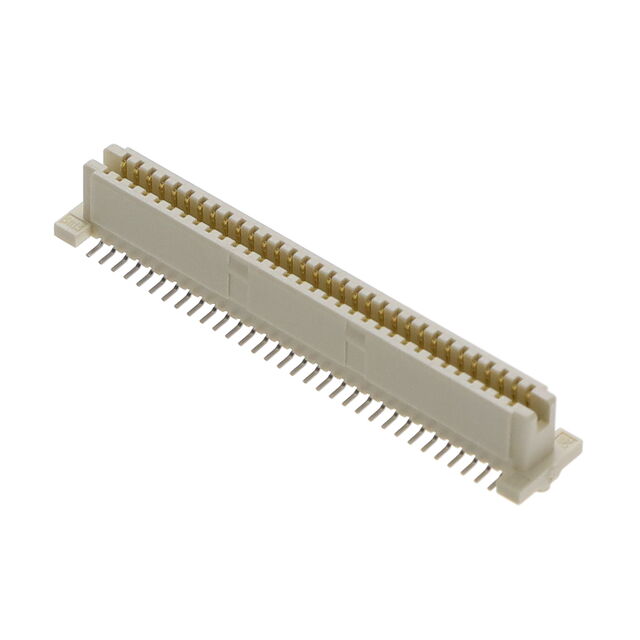

HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KYOCERA AVX

HEADER CONNECTOR,PCB MNT,PLUG,64 CONTACTS,SKT,0.039 PITCH,SURFACE MOUNT TERMINAL,LOCKING MECH ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources

Specification	245015064100863+	245015 Series

Connector Type	Receptacle, Outer Shroud Contacts	Receptacle, Outer Shroud Contacts
Contact Finish	Gold	Gold
Features	Pick and Place, Board Guide	Pick and Place, Board Guide
Height Above Board	-	0.417 in
Height Above Board	-	10.6 mm
Mated Stacking Heights	10 mm, 15 mm, 13 mm, 8 mm	8 - 15 mm
Mounting Type	Surface Mount	Surface Mount
Number of Positions	64	64
Number of Rows	2	2
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm

Part	Contact Finish	Number of Positions	Mated Stacking Heights	Features	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Height Above Board [z]	Height Above Board [z]	Mounting Type
KYOCERA AVX 245015064005861+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts	0.417 in	10.6 mm	Surface Mount
KYOCERA AVX 245015064000863+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts			Surface Mount
KYOCERA AVX 245015064103861+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts			Surface Mount
KYOCERA AVX 245015064105863+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts	0.417 in	10.6 mm	Surface Mount
KYOCERA AVX 245015064100861+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts			Surface Mount
KYOCERA AVX 245015064100863+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts			Surface Mount
KYOCERA AVX 245015064105861+	Gold	64	8 mm, 10 mm, 13 mm, 15 mm	Board Guide, Pick and Place	0.039 in	1 mm	2	Receptacle, Outer Shroud Contacts	0.417 in	10.6 mm	Surface Mount
