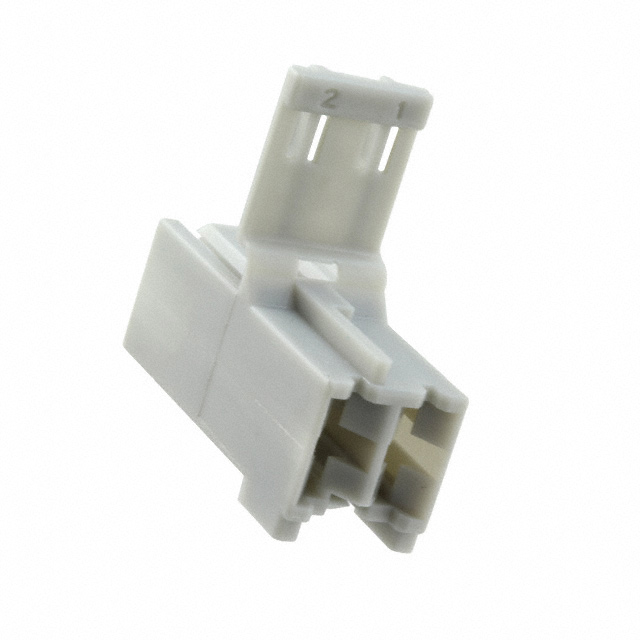

3-964951-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
3-964951-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-964951-2 | 964951 Series |
|---|---|---|
| Color | Gray | Gray, Pink |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket, Male Pin |
| Fastening Type | Locking Ramp | Locking Ramp, Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 2 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| Tape & Reel (TR) | 35000 | $ 0.23 | ||
964951 Series
CONN RCPT HSG 2POS 5.00MM
| Part | Color | Fastening Type | Insulation Material | Connector Type | Contact Type | Number of Rows | Number of Positions | Pitch [x] | Pitch [x] | Mounting Type | Note | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-964951-2 | Gray | Locking Ramp | Polyamide (PA66), Nylon 6/6 | Receptacle | Female Socket | 1 | 2 | 5 mm | 0.197 in | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 110 °C | Crimp |
TE Connectivity AMP Connectors 964951-2 | Pink | Latch Lock | Polyamide (PA66), Nylon 6/6 | Receptacle | Male Pin | 1 | 2 | 5 mm | 0.197 in | Free Hanging (In-Line) | Contacts Not Included | -40 °C | 110 °C | Crimp |
Description
General part information
964951 Series
2 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
