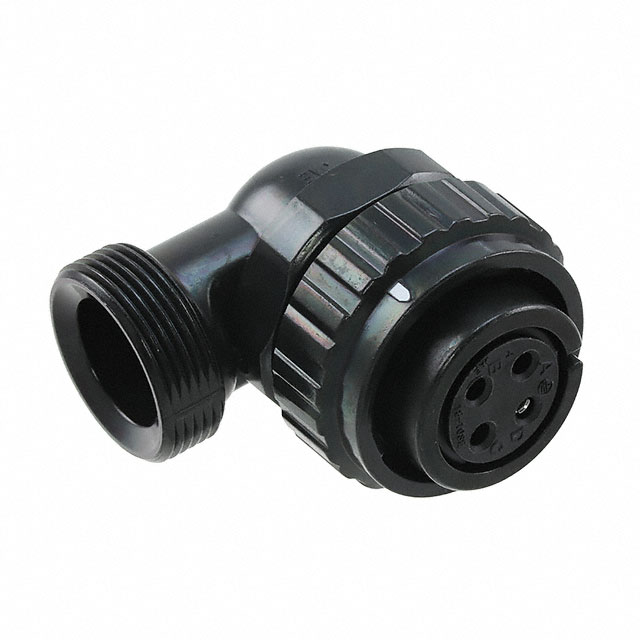

JL10-8A18-10SE-EB

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JL10-8A18-10SE-EB

Applications	Industrial, Test Equipment & Measurement, Communication Systems
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Fastening Type	Bayonet Lock
Features	Backshell, Ground, Rotatable, Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	18-10

Part	Ingress Protection	Features	Fastening Type	Contact Material	Shell Size - Insert	Mounting Type	Applications	Orientation	Color	Shell Finish	Primary Material	Contact Finish - Mating	Shell Material	Connector Type	Current Rating (Amps)	Insert Material	Number of Positions
JAE Electronics JL10-8A18-10SE-EB	IP67 - Dust Tight Waterproof	Backshell Coupling Nut Ground Rotatable	Bayonet Lock	Copper Alloy	18-10	Free Hanging (In-Line) Right Angle	Communication Systems Industrial Test Equipment & Measurement	N	Black	Zinc	Metal	Silver	Aluminum Alloy	Female Sockets Plug	23 A	Synthetic Resin	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Plug, Female Sockets Solder Cup
