EVALAUDIOI2SCOMTOBO1
UnknownKIT EVALUATION BOARD - I2S INTERFACE BOARD FOR EVAL_AUDIO_MA12040P AND EVAL_AUDIO_MA12070P
Deep-Dive with AI
Search across all available documentation for this part.
EVALAUDIOI2SCOMTOBO1
UnknownKIT EVALUATION BOARD - I2S INTERFACE BOARD FOR EVAL_AUDIO_MA12040P AND EVAL_AUDIO_MA12070P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALAUDIOI2SCOMTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Max Output Power x Channels @ Load | 40 W, 2 channels |
| Output Type | 2-Channel (Stereo) |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MA12040P |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AUDIOI2SCOM Series

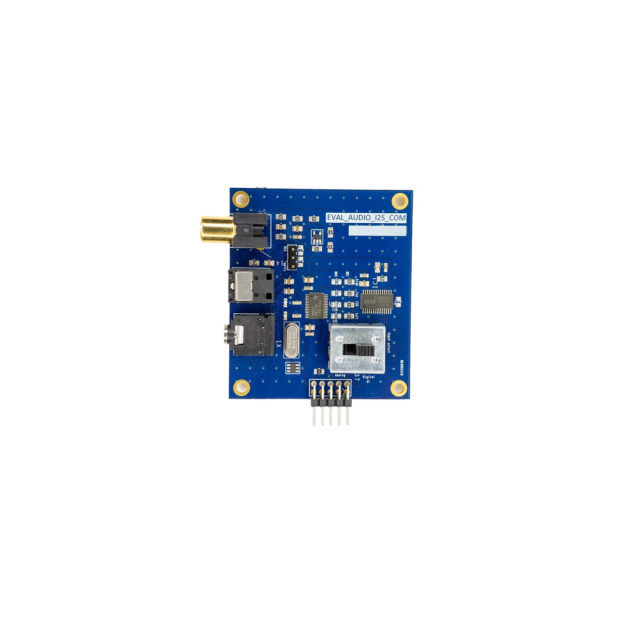

EVALAUDIOI2SCOMTOBO1 is an universal I2S interface board. This is an add-on board intended to use with the EVAL_AUDIO_MA12040P and EVAL_AUDIO_MA12070P Class D audio amplifier boards. The I2S interface board converts either analog or digital S/PDIF audio into an I2S format that matches the default settings of the EVAL_AUDIO_MA1240P/MA12070P boards. The I2S interface board should be used when the user has no I2S source for the EVAL_AUDIO_MA1240P/MA12070P boards. Support for three different input signal options such as Analog audio input via the on-board 3.5mm jack connector, Digital audio input via the on-board RCA connector, digital audio input via the on-board optical connector.
