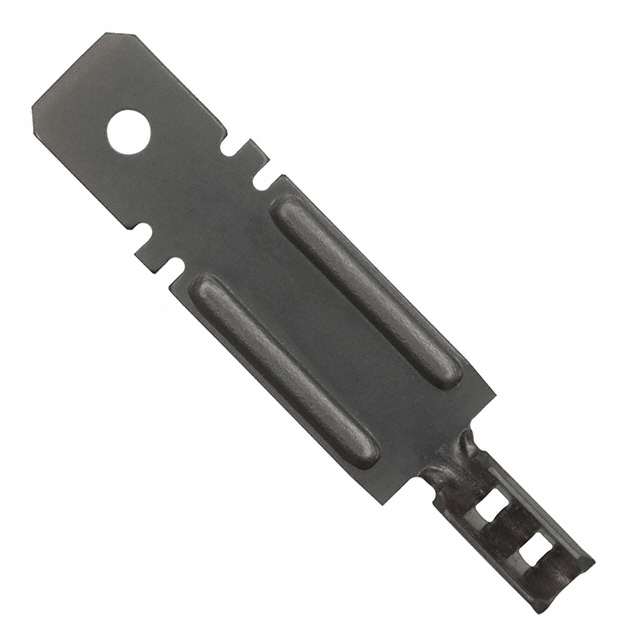

63300-1
ActiveTE Connectivity Raychem Cable Protection
312 FASTON TAB 22-15 AWG NPST
Deep-Dive with AI
Search across all available documentation for this part.
63300-1
ActiveTE Connectivity Raychem Cable Protection
312 FASTON TAB 22-15 AWG NPST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 63300-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Steel |
| Features | High Temperature |
| Gender | Male |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 7.92 mm |
| Tab Width | 0.312 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 15 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
Description
General part information
FASTON 312 Series
Quick Disconnect Tab, 22 – 15 AWG, .32 – 1.65 mm² Wire, 7.92 mm [.312 in] Tab Width, Straight, Steel, Nickel Plating, Strip/Reel, F-Crimp, FASTON 312
