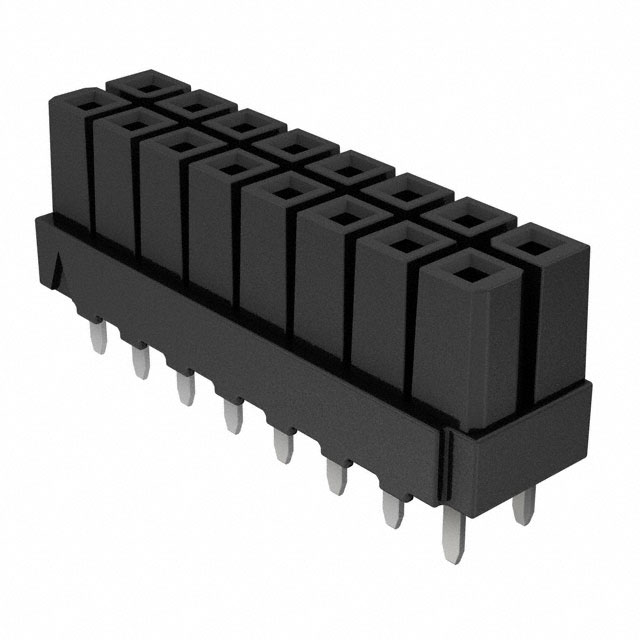

IPBS-108-01-T-D

Active

Samtec Inc.

CONN ISOLATED POWER SOCKET SKT 16POWER POS 4.19MM SOLDER ST TOP ENTRY THRU-HOLE POWER MATE® TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ISOLATED POWER SOCKET SKT 16POWER POS 4.19MM SOLDER ST TOP ENTRY THRU-HOLE POWER MATE® TUBE

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Post	Voltage Rating	Termination	Fastening Type	Contact Shape	Number of Positions	Mounting Type	Insulation Height	Insulation Height	Contact Material	Contact Length - Post	Contact Length - Post	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Number of Rows	Insulation Color	Connector Type	Number of Positions Loaded	Number of Positions	Features
Samtec Inc. IPBS-108-01-T-D	Tin	400 VAC 565 VDC	Solder	Push-Pull	Square	16	Through Hole	12.2 mm	0.48 in	Phosphor Bronze	3.94 mm	0.155 "	Female Socket	105 ░C	-55 °C	4.2 mm	0.165 in	4.2 mm	0.165 in	Liquid Crystal Polymer (LCP)	2	Black	Header	All
Samtec Inc. IPBS-108-01-T-S	Tin	400 VAC 565 VDC	Solder	Push-Pull	Square		Through Hole	12.2 mm	0.48 in	Phosphor Bronze	3.94 mm	0.155 "	Female Socket	105 ░C	-55 °C	4.2 mm	0.165 in			Liquid Crystal Polymer (LCP)	1	Black	Header	All	8
Samtec Inc. IPBS-108-01-T-D-GP	Tin	400 VAC 565 VDC	Solder	Push-Pull	Square	16	Through Hole	12.2 mm	0.48 in	Phosphor Bronze	3.94 mm	0.155 "	Female Socket	105 ░C	-55 °C	4.2 mm	0.165 in	4.2 mm	0.165 in	Liquid Crystal Polymer (LCP)	2	Black	Header	All		Guide Pin
