A98000-512

Active

Omnetics

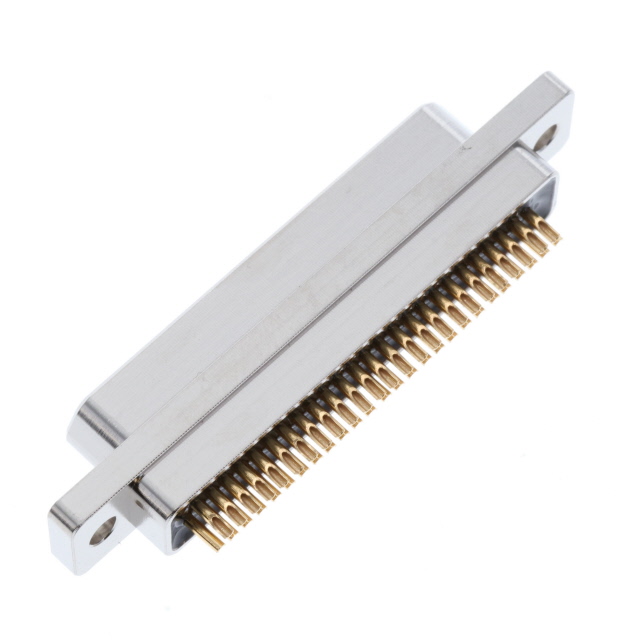

CONN MICRO-D PLUG 51POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 51POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98000-512	MMDP-512 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	51	51
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CABLE ASSY MICRO-D 51POS 1.5'

Part	Number of Positions	Contact Finish	2nd Connector	Color	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Shielding	Type	Mounting Type	Connector Style	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Current Rating (Amps)	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Shell Material, Finish	Contact Material	Contact Form
Omnetics A98100-512	51	Gold	Individual Wire Leads	Individual, Multiple	Plug, Male Pins	50 µin	1.27 µm	457.2 mm	1.5 ft	Unshielded	D-Type, Micro-D
Omnetics A98000-512	51	Gold				50 µin	1.27 µm					Free Hanging (In-Line)	D-Type, Micro-D	2	0.05	0.05	Thermoplastic	3 A	Housing/Shell (Unthreaded)	-55 °C	125 °C	Male Pins, Plug	Signal	Aluminum, Electroless, Nickel Plated	Copper Alloy	Stamped

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

51 Position D-Type, Micro-D Plug, Male Pins Connector
