IXYY8N90C3

Active

IXYS

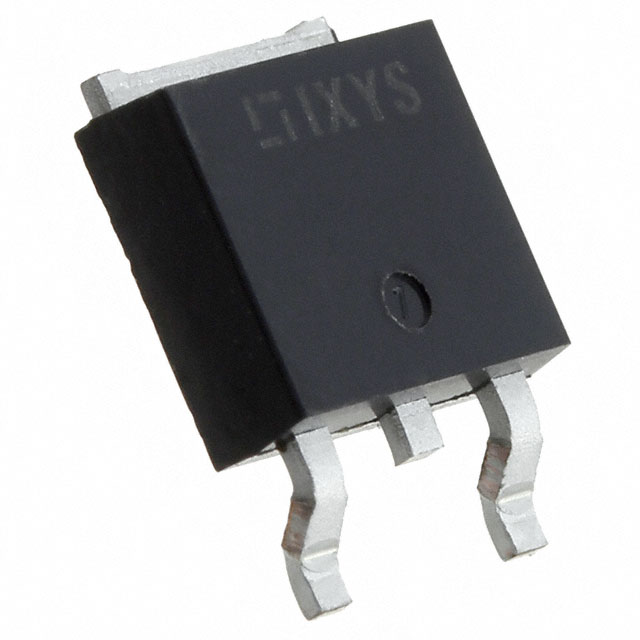

IGBT 900V 20A 125W C3 TO-252

Search across all available documentation for this part.

Active

IXYS

IGBT 900V 20A 125W C3 TO-252

Technical Specifications

Parameters and characteristics for this part

Specification	IXYY8N90C3

Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	48 A
Gate Charge	13.3 nC
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Supplier Device Package	TO-252AA
Switching Energy	180 µJ, 460 µJ
Td (on/off) @ 25°C	16 ns, 40 ns
Test Condition	15 V, 30 Ohm, 450 V, 8 A
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max)	900 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max)	Test Condition	Gate Charge	Vce(on) (Max) @ Vge, Ic	Current - Collector Pulsed (Icm)	Supplier Device Package	Package / Case	Td (on/off) @ 25°C	Switching Energy	Voltage - Collector Emitter Breakdown (Max)
IXYS IXYY8N90C3	Surface Mount	-55 °C	175 ░C	20 A	8 A 15 V 30 Ohm 450 V	13.3 nC	2.5 V	48 A	TO-252AA	DPAK (2 Leads + Tab) SC-63 TO-252-3	16 ns 40 ns	180 µJ 460 µJ	900 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 900 V 20 A 125 W Surface Mount TO-252AA
