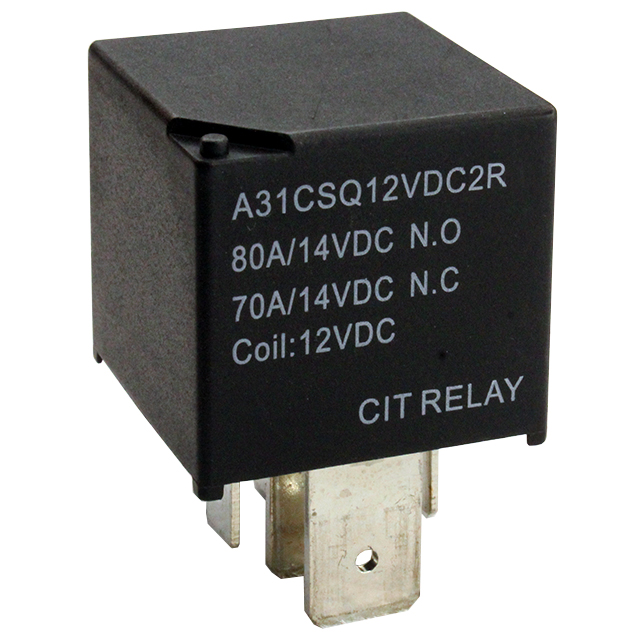

A31CSQ12VDC2R

Active

CIT Relay and Switch

75V@DC 80A 12V ONE CONVERSION: 1C (SPDT-CONVERSION) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

75V@DC 80A 12V ONE CONVERSION: 1C (SPDT-CONVERSION) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	A31CSQ12VDC2R

Coil Current	150 mA
Coil Power	1.8 W
Coil Resistance	80 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	80 A
Features	Resistor, Sealed - Fully
Mounting Type	Socketable
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	7 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	5 ms
Switching Voltage	75 VDC
Termination Style	Quick Connect - Multiple Sizes

Part	Must Release Voltage	Mounting Type	Coil Power	Release Time	Coil Resistance	Coil Current	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Features	Coil Type	Termination Style	Coil Voltage	Contact Rating (Current)	Must Operate Voltage	Operate Time	Contact Form
CIT Relay and Switch A31CSQ24VDC2	2.4 VDC	Socketable	1.8 W	5 ms	320 Ohms	75 mA	75 VDC	125 °C	-40 °C	Silver Tin Oxide Indium Oxide (AgSnOInO)	Sealed - Fully	Non Latching	Quick Connect - Multiple Sizes	24 VDC	80 A	16.8 VDC	7 ms	SPDT (1 Form C)
CIT Relay and Switch A31CSQ12VDC2R	1.2 VDC	Socketable	1.8 W	5 ms	80 Ohms	150 mA	75 VDC	125 °C	-40 °C	Silver Tin Oxide Indium Oxide (AgSnOInO)	Resistor Sealed - Fully	Non Latching	Quick Connect - Multiple Sizes	12 VDC	80 A	8.4 VDC	7 ms	SPDT (1 Form C)
CIT Relay and Switch A31CSQ24VDC2D	2.4 VDC	Socketable	1.8 W	5 ms	320 Ohms	75 mA	75 VDC	125 °C	-40 °C	Silver Tin Oxide Indium Oxide (AgSnOInO)	Diode Sealed - Fully	Non Latching	Quick Connect - Multiple Sizes	24 VDC	80 A	16.8 VDC	7 ms	SPDT (1 Form C)
CIT Relay and Switch A31CSQ24VDC2R	2.4 VDC	Socketable	1.8 W	5 ms	320 Ohms	75 mA	75 VDC	125 °C	-40 °C	Silver Tin Oxide Indium Oxide (AgSnOInO)	Resistor Sealed - Fully	Non Latching	Quick Connect - Multiple Sizes	24 VDC	80 A	16.8 VDC	7 ms	SPDT (1 Form C)
