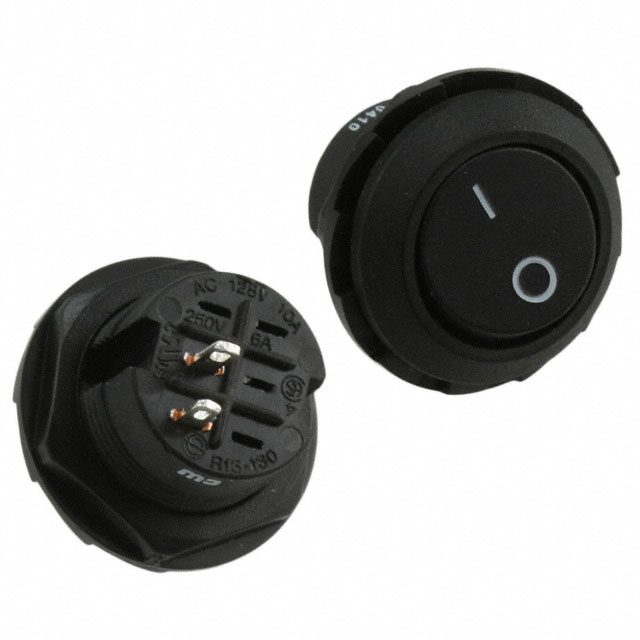

GRB130A05BB2

Active

CW Industries

SWITCH ROCKER SPST 10A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB130A05BB2

Actuator Marking	O -
Actuator Type	Round
Approval Agency	cULus, CSA
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Threaded Body with Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	18.2 mm
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Marking	Current Rating (Amps)	Termination Style	Voltage Rating - AC	Mechanical Life	Circuit	Mounting Type	Approval Agency	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function
CW Industries GRB130A05BB2	O -	10 A	Solder Lug	125 V	100000 Cycles	SPST	Panel Mount Threaded Body with Nut	CSA cULus	Black	18.2 mm	-25 °C	85 °C	Round	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Threaded Body with Nut

Technical documentation and resources

No documents available
