2SB10730RL

Obsolete

Panasonic Industrial Automation Sales

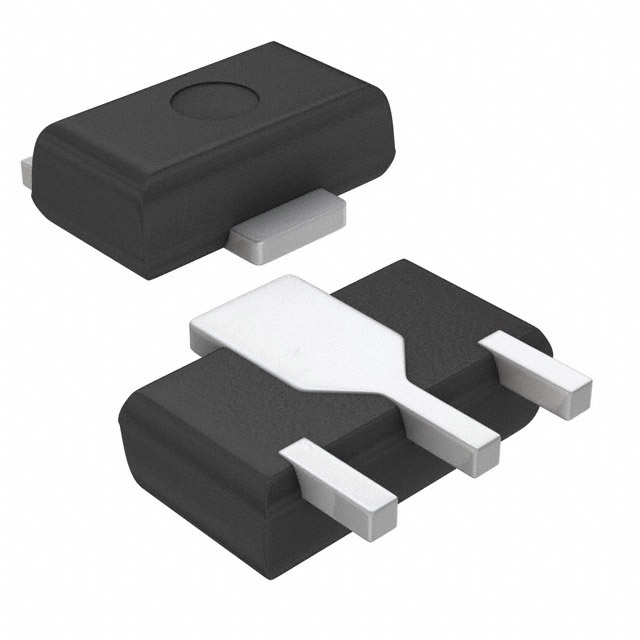

TRANS PNP 20V 4A MINIP3-F1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 20V 4A MINIP3-F1

Technical Specifications

Parameters and characteristics for this part

Specification	2SB10730RL

Current - Collector (Ic) (Max) [Max]	4 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	180
Frequency - Transition	120 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	1 W
Supplier Device Package	MiniP3-F1
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	20 V

Part	Mounting Type	Current - Collector (Ic) (Max) [Max]	Operating Temperature	DC Current Gain (hFE) (Min) @ Ic, Vce	Supplier Device Package	Transistor Type	Frequency - Transition	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Vce Saturation (Max) @ Ib, Ic
Panasonic Industrial Automation Sales 2SB10730RL	Surface Mount	4 A	150 °C	180	MiniP3-F1	PNP	120 MHz	TO-243AA	1 W	100 nA	20 V	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 20 V 4 A 120MHz 1 W Surface Mount MiniP3-F1

Technical documentation and resources
