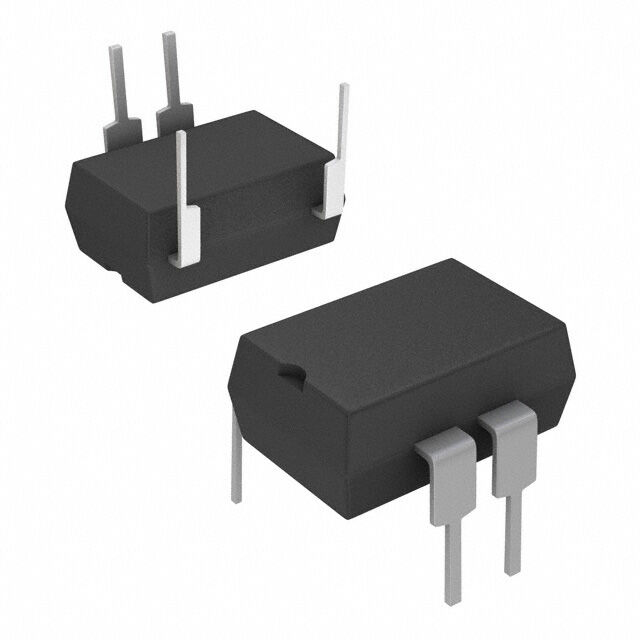

PVA1052
ObsoleteInfineon Technologies
DIP-8 SOLID STATE RELAYS (MOS OUTPUT)
Deep-Dive with AI
Search across all available documentation for this part.
PVA1052
ObsoleteInfineon Technologies
DIP-8 SOLID STATE RELAYS (MOS OUTPUT)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PVA1052 |
|---|---|
| Approval Agency | UL |
| Load Current | 70 mA |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 35 Ohm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 7.62 mm |
| Package / Case | 8-DIP |
| Package / Case | 0.3 in |
| Supplier Device Package | 8-DIP Modified |
| Termination Style | PC Pin |
| Voltage - Input | 1.2 VDC |
| Voltage - Load [Max] | 100 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 10.88 | |
| 200 | $ 4.34 | |||
| 500 | $ 4.20 | |||
| 1000 | $ 4.12 | |||
Description
General part information
PVA105 Series
Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
Documents
Technical documentation and resources
No documents available
