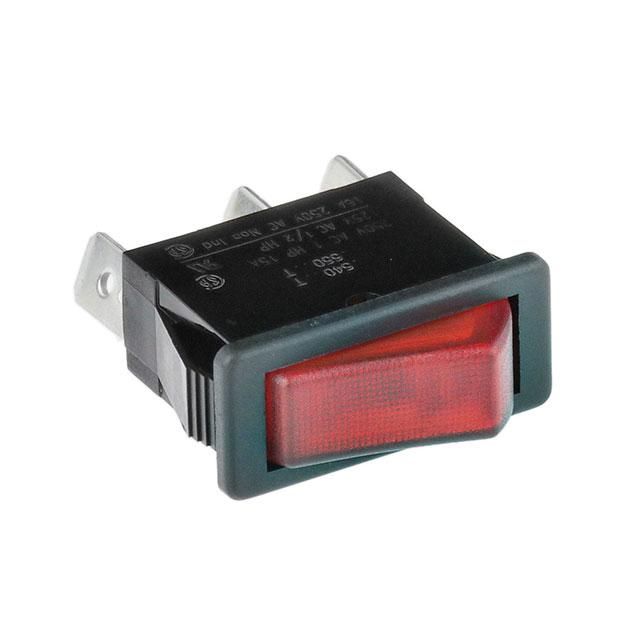

C5503ATNAB

Active

BULGIN LIMITED

SWITCH ROCK ON-OFF ILLUM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCK ON-OFF ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	C5503ATNAB

null

Part	Current Rating (Amps)	Illumination Type, Color	Illumination Voltage (Nominal)	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Termination Style	Switch Function	Approval Agency	Actuator Type	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit
BULGIN LIMITED C5503ATBR7	16 A	Incandescent Red	12 VAC	250 V	Red	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	On-Off	CSA UL	Concave (Curved) - Illuminated	No Marking	11.6 mm	28.3 mm	SPST
BULGIN LIMITED C5503ATBG3	16 A	Green Neon	250 VAC	250 V	Green	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	On-Off	CSA UL	Concave (Curved) - Illuminated	No Marking	11.6 mm	28.3 mm	SPST
BULGIN LIMITED C5503ATNAB
BULGIN LIMITED C5503ATBR2	16 A	Neon Red	125 VAC	250 V	Red	Panel Mount Snap-In	Quick Connect - 0.250" (6.3mm)	On-Off	CSA UL	Concave (Curved) - Illuminated	No Marking	11.6 mm	28.3 mm	SPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch
