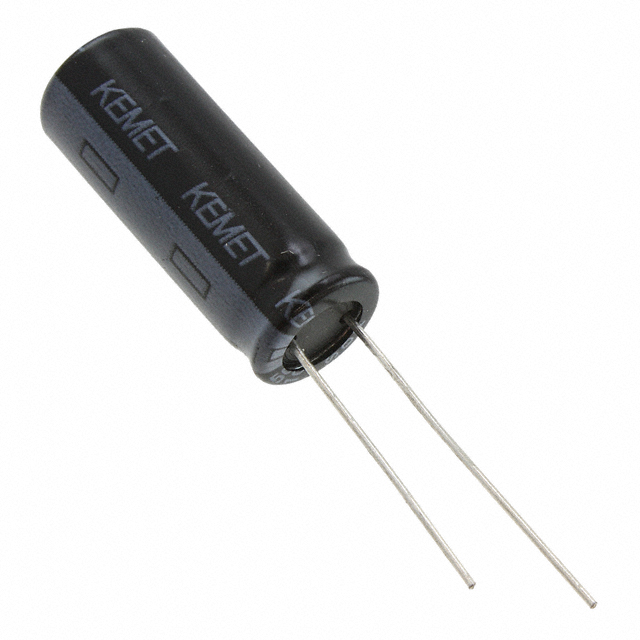

ESY827M025AH5AA

Active

KEMET

CAP ALUM 820UF 20% 25V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 820UF 20% 25V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESY827M025AH5AA

Applications	General Purpose
Capacitance	820 µF
ESR (Equivalent Series Resistance)	23 mOhm
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Impedance	23 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	4000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.15 A
Ripple Current @ Low Frequency	1.6125 A
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Ripple Current @ Low Frequency	Tolerance	Impedance	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Polarization	ESR (Equivalent Series Resistance)	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]
KEMET ESY827M6R3AG8AA	750 mA	20 %	56 mOhms	3000 Hrs	Radial Can	0.709 "	18 mm	0.315 "	8 mm	820 µF	Polar	56 mOhm	General Purpose	-40 °C	105 ░C	Through Hole	3.5 mm	0.138 in	6.3 V	1 A
KEMET ESY827M025AH5AA	1.6125 A	20 %	23 mOhms	4000 Hrs	Radial Can	1.063 in		0.394 in	10 mm	820 µF	Polar	23 mOhm	General Purpose	-40 °C	105 ░C	Through Hole	5 mm	0.197 in	25 VDC	2.15 A	27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4800	$ 0.41
Newark	Each	2500	$ 0.41

General part information

820 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 23mOhm @ 100kHz 4000 Hrs @ 105°C
