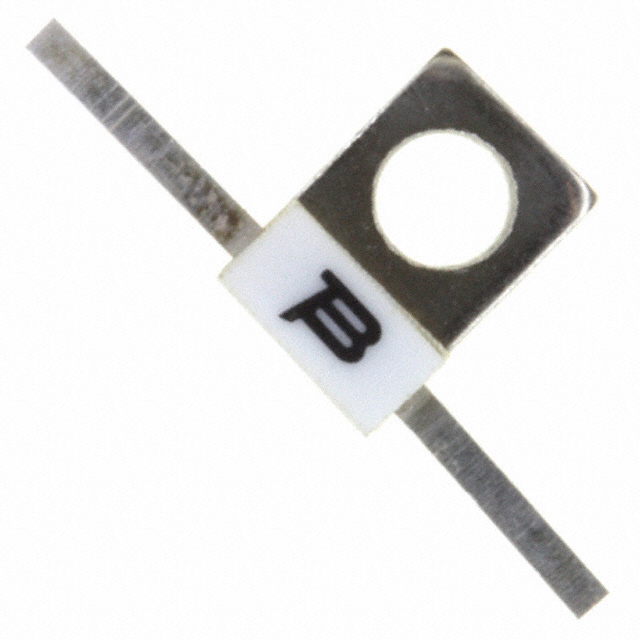

CHF3020CBF101R
ObsoleteBourns Inc.
RES CHAS MNT 100 OHM 5% 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHF3020CBF101R
ObsoleteBourns Inc.
RES CHAS MNT 100 OHM 5% 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHF3020CBF101R |
|---|---|
| Coating, Housing Type | Aluminum Oxide |
| Composition | Thick Film |
| Features | RF, High Frequency |
| Height - Seated (Max) [Max] | 0.146 in |
| Height - Seated (Max) [Max] | 3.7 mm |
| Lead Style | Tab |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 10 W |
| Resistance | 100 Ohms |
| Size / Dimension [x] | 7.62 mm, 0.3 " |
| Size / Dimension [y] | 5.08 mm |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CHF3020 Series
100 Ohms ±5% 10W Thick Film Chassis Mount Resistor
