TRAB8903NP
ActiveTE Connectivity Raychem Cable Protection

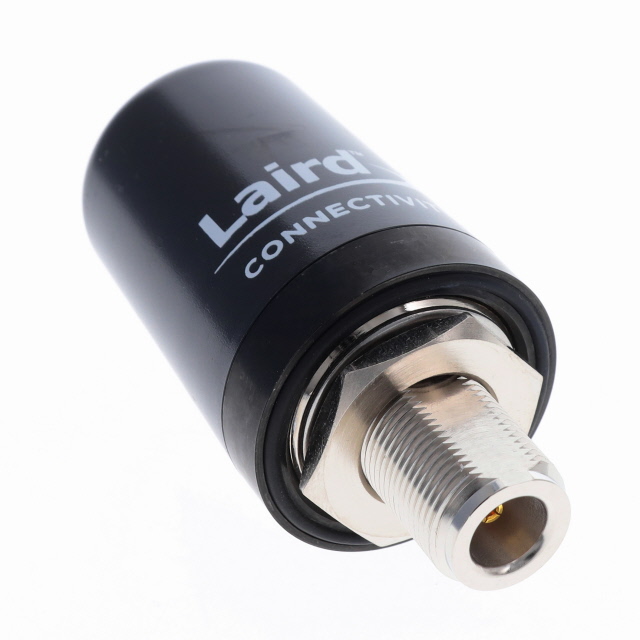

RF ANT 900MHZ DOME N FEM PAN MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsVehicular Antenna Catalog
TRAB8903NP
ActiveTE Connectivity Raychem Cable Protection
RF ANT 900MHZ DOME N FEM PAN MT
Deep-Dive with AI
DocumentsVehicular Antenna Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | TRAB8903NP |
|---|---|
| Antenna Type | Dome |
| Applications | GSM |
| Frequency (Center/Band) | 900 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 890 MHz |
| Gain | 3 dBi |
| Height (Max) | 68.58 mm |
| Height (Max) [Max] [z] | 2.7 in |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.50 | |
| 10 | $ 63.17 | |||
| 25 | $ 61.51 | |||
| 100 | $ 56.94 | |||
Description
General part information
TRAB8903 Series
RF ANTENNA GSM Dome N Type Female Panel Mount
