CDB4349

Cirrus Logic Inc.

EVAL BOARD FOR CS4349

Search across all available documentation for this part.

Cirrus Logic Inc.

EVAL BOARD FOR CS4349

Technical Specifications

Parameters and characteristics for this part

Part	Resolution (Bits)	Type	Sampling Rate (Per Second)	Voltage Supply Source	Mounting Type	Number of Channels [custom]	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Data Interface	Supplier Device Package	DAC Type	Number of Bits	Number of DAC's	Supplied Contents	Utilized IC / Part
Cirrus Logic Inc. CS4349-DZZR	24 b	Audio DAC	192k	Single Supply	Surface Mount	2	24-TSSOP	0.173 in 4.4 mm	-40 °C	105 ░C	SPI	24-TSSOP
Cirrus Logic Inc. CS4349-DZZ	24 b	Audio DAC	192k	Single Supply	Surface Mount	2	24-TSSOP	0.173 in 4.4 mm	-40 °C	105 ░C	SPI	24-TSSOP
Cirrus Logic Inc. CS4349-CZZR	24 b	Audio DAC	192k	Single Supply	Surface Mount	2	24-TSSOP	0.173 in 4.4 mm	-40 °C	85 °C	SPI	24-TSSOP
Cirrus Logic Inc. CDB4349			192k								Serial		Voltage	24	2	Board(s)	CS4349
Cirrus Logic Inc. CS4349-CZZ	24 b	Audio DAC	192k	Single Supply	Surface Mount	2	24-TSSOP	0.173 in 4.4 mm	-40 °C	85 °C	SPI	24-TSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 488.44

General part information

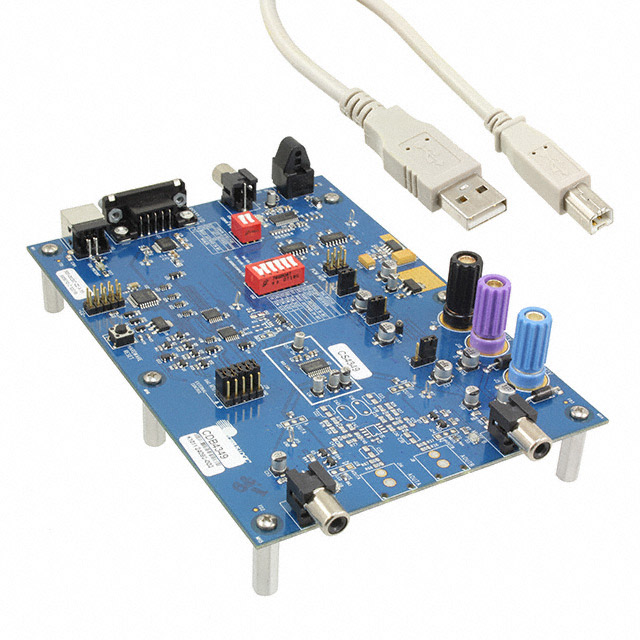

CS4349 24 Bit 192k Samples Per Second Digital to Analog Converter (DAC) Evaluation Board

Technical documentation and resources
