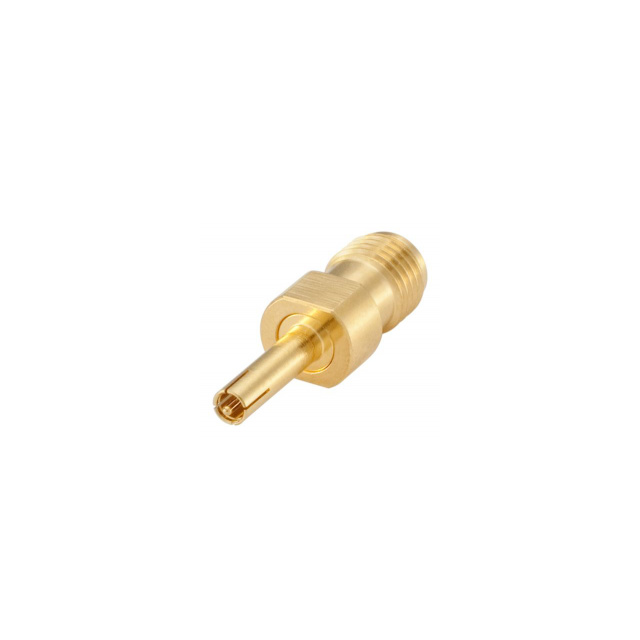

15S132-K02L5

Obsolete

Rosenberger

ADAPTER MICRO-RF M - SMA F

Search across all available documentation for this part.

Obsolete

Rosenberger

ADAPTER MICRO-RF M - SMA F

Technical Specifications

Parameters and characteristics for this part

Specification	15S132-K02L5

Adapter Series	SMA to Micro RF
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Micro RF Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	10000
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Dielectric Material	Adapter Type	Frequency - Max [Max]	Center Contact Material	Impedance	Fastening Type	Mounting Type	Adapter Series	Conversion Type	Convert To (Adapter End)	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Style	Body Finish	Center Contact Plating	Convert From (Adapter End)	Body Material
Rosenberger 15S132-K04L5	Polytetrafluoroethylene (PTFE)	Plug to Jack	6000 MHz	Beryllium Copper	50 Ohms	Snap-On Threaded	Free Hanging (In-Line)	SMA to Micro RF	Between Series	Female Socket SMA Jack	200000	90 °C	-40 °C	Straight	Gold	Gold	Micro RF Plug Male Pin	Beryllium Copper Brass
Rosenberger 15S132-K02L5	Polytetrafluoroethylene (PTFE)	Plug to Jack	6000 MHz	Beryllium Copper	50 Ohms	Snap-On Threaded	Free Hanging (In-Line)	SMA to Micro RF	Between Series	Female Socket SMA Jack	10000	90 °C	-40 °C	Straight	Gold	Gold	Micro RF Plug Male Pin	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector Micro RF Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
