TL22SCAG015C

Obsolete

NKK Switches

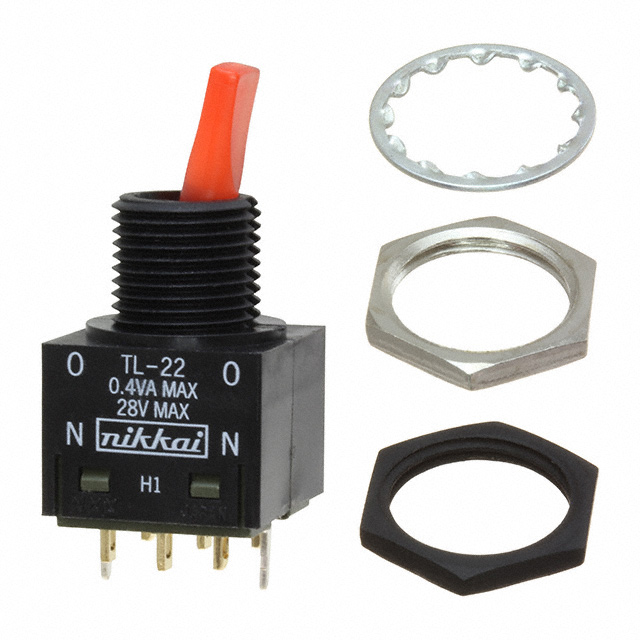

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	TL22SCAG015C

Actuator Length [x]	11 mm
Actuator Material	Polycarbonate (PC)
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Illumination	Switch Function	Ingress Protection	Voltage Rating - DC	Illumination Type, Color	Features	Actuator Length [x]	Termination Style	Actuator Type	Voltage Rating - AC	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Material	Electrical Life	Bushing Thread	Bushing Thread	Illumination Voltage (Nominal)
NKK Switches TL22SCAG015C	DPDT	Illuminated	On-On	IP65 - Dust Tight Water Resistant	28 V	LED Red	Epoxy Sealed Terminals	11 mm	Solder Lug	Flatted	28 V	0.4 VA	12.5 mm	55 °C	-10 °C	Polycarbonate (PC)	50000 Cycles	M12	1 x 1	2 VDC
