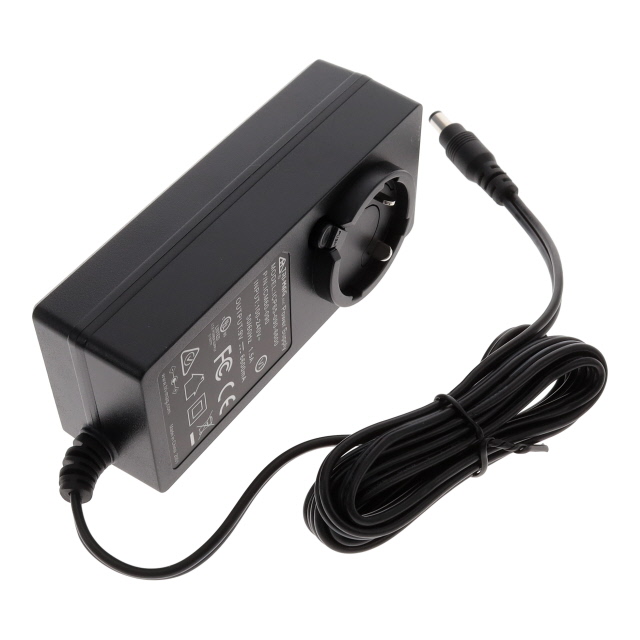

ICM60-090
ActiveTri-Mag, LLC
AC/DC WALL MOUNT ADAPTER 9V 54W
Deep-Dive with AI
Search across all available documentation for this part.
ICM60-090
ActiveTri-Mag, LLC
AC/DC WALL MOUNT ADAPTER 9V 54W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICM60-090 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, FCC, UL |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P, Multi-Blade |
| Input Type | Multi-Blade, Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 54 W |
| Region Utilized | International |
| Size / Dimension [x] | 117.3 mm |
| Size / Dimension [x] | 4.62 " |
| Size / Dimension [y] | 54.4 mm |
| Size / Dimension [y] | 2.14 in |
| Size / Dimension [z] | 1.4 " |
| Size / Dimension [z] | 35.6 mm |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.23 | |
| 5 | $ 20.44 | |||
| 10 | $ 19.71 | |||
| 25 | $ 18.80 | |||
| 50 | $ 18.13 | |||
| 100 | $ 17.49 | |||
| 250 | $ 16.67 | |||
| 500 | $ 16.08 | |||
Description
General part information
ICM60 Series
9V 54 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
