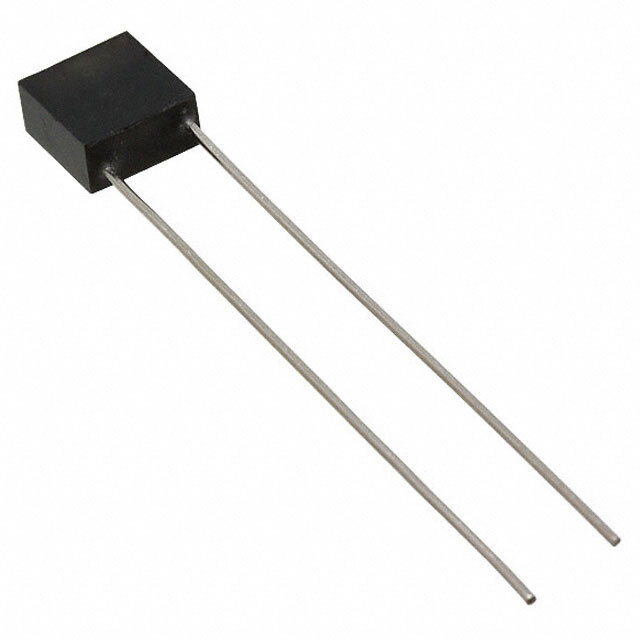

VRR40L274KGS

Active

KEMET

CAP CER 0.27UF 500V X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 0.27UF 500V X7R RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VRR40L274KGS	VRR40L Series

Applications	General Purpose	General Purpose
Capacitance	0.27 µF	0.25 - 0.27 µF
Features	High Voltage, High Temperature	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.4 in	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm	10.16 mm
Lead Spacing	6.35 mm	6.35 mm
Lead Spacing	0.25 in	0.25 in
Lead Style	Straight	Straight
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial	Radial
Size / Dimension [x]	0.35 in	0.35 in
Size / Dimension [x]	8.89 mm	8.89 mm
Size / Dimension [y]	6.98 mm	6.98 mm
Size / Dimension [y]	0.275 in	0.275 in
Temperature Coefficient	X7R	X7R
Tolerance	10 %	10 %
Voltage - Rated	500 V	500 V

CAP CER 0.25UF 500V X7R RADIAL

Part	Mounting Type	Lead Spacing	Lead Spacing	Features	Lead Style	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Temperature Coefficient	Capacitance	Package / Case
KEMET VRR40L254KGS	Through Hole	6.35 mm	0.25 in	High Temperature, High Voltage	Straight	10 %	-55 °C	200 °C	General Purpose	6.98 mm	0.35 in	8.89 mm	0.275 in	0.4 in	10.16 mm	500 V	X7R	0.25 µF	Radial
KEMET VRR40L274KGS	Through Hole	6.35 mm	0.25 in	High Temperature, High Voltage	Straight	10 %	-55 °C	200 °C	General Purpose	6.98 mm	0.35 in	8.89 mm	0.275 in	0.4 in	10.16 mm	500 V	X7R	0.27 µF	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.27 µF ±10% 500V Ceramic Capacitor X7R Radial
