Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2961150 | 29611 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 14 mA | 3 - 17 mA |
| Coil Resistance | 848 Ohms | 3.39 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 60 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) | Gold (Au), Silver Tin Oxide (AgSnO), Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 - 8 A |
| Load - Max Switching | - | 1500 VA |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 5 ms | 5 - 7 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 2.5 ms | 2.5 - 3 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29611 Series
POWER RELAY, SPDT, 24 VDC, 50 MA, REL-MR SERIES, THROUGH HOLE, NON LATCHING
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Current | Switching Voltage | Coil Voltage | Relay Type | Load - Max Switching | Coil Resistance | Operate Time | Release Time | Approval Agency | Contact Material | Contact Rating (Current) | Termination Style | Mounting Type | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2961121 | 85 °C | -40 °C | Non Latching | 7 mA | 250 VAC | 24 VDC | General Purpose | 1500 VA | 3.39 kOhms | 5 ms | 2.5 ms | cULus, EAC, UR | Gold (Au), Silver Tin Oxide (AgSnO) | 6 A | PC Pin | Through Hole | SPDT (1 Form C) |
Phoenix Contact 2961134 | 85 °C | -40 °C | Non Latching | 3 mA | 250 VAC | 60 VDC | General Purpose | 1500 VA | 20.5 kOhms | 5 ms | 2.5 ms | cULus, EAC, UR | Gold (Au), Silver Tin Oxide (AgSnO) | 6 A | PC Pin | Through Hole | SPDT (1 Form C) |
Phoenix Contact 2961150 | 85 °C | -40 °C | Non Latching | 14 mA | 250 VAC, 250 VDC | 12 VDC | General Purpose | 848 Ohms | 5 ms | 2.5 ms | cULus, EAC, UR | Silver Tin Oxide (AgSnO) | 6 A | PC Pin | Through Hole | SPDT (1 Form C) | |
Phoenix Contact 2961192 | 85 °C | -40 °C | Non Latching | 17 mA | 250 VAC, 250 VDC | 24 VDC | General Purpose | 1440 Ohms | 7 ms | 3 ms | cULus, EAC, UR | Silver Nickel (AgNi) | 8 A | PC Pin | Through Hole | DPDT (2 Form C) | |
Phoenix Contact 2961163 | 85 °C | -40 °C | Non Latching | 14 mA | 250 VAC, 250 VDC | 12 VDC | General Purpose | 848 Ohms | 5 ms | 2.5 ms | cULus, EAC, UR | Gold (Au), Silver Tin Oxide (AgSnO) | 6 A | PC Pin | Through Hole | SPDT (1 Form C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
29611 Series

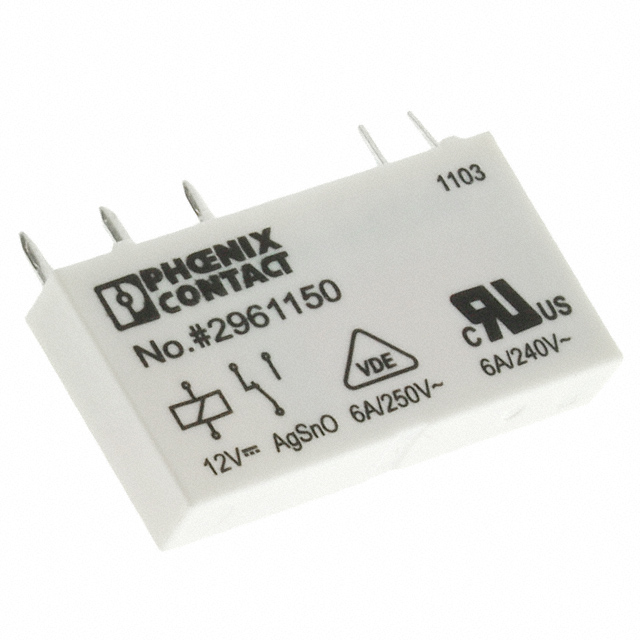

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
