2961134

Active

Phoenix Contact

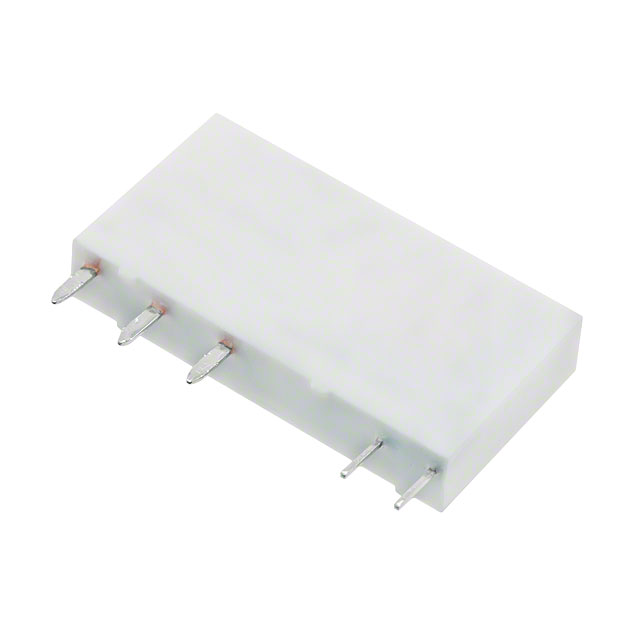

POWER RELAY 60VDC 50A SPDT(28X5X15)MM THT

Search across all available documentation for this part.

Active

Phoenix Contact

POWER RELAY 60VDC 50A SPDT(28X5X15)MM THT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 60VDC Coil Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2961134	29611 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR
Coil Current	3 mA	3 - 17 mA
Coil Resistance	20.5 kOhms	3.39 - 1440 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	60 VDC	12 - 60 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), DPDT (2 Form C)
Contact Material	Gold (Au), Silver Tin Oxide (AgSnO)	Gold (Au), Silver Tin Oxide (AgSnO), Silver Nickel (AgNi)
Contact Rating (Current)	6 A	6 - 8 A
Load - Max Switching	1500 VA	1500 VA
Mounting Type	Through Hole	Through Hole
Operate Time	5 ms	5 - 7 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	2.5 ms	2.5 - 3 ms
Switching Voltage	250 VAC	250 VAC
Termination Style	PC Pin	PC Pin

POWER RELAY, SPDT, 24 VDC, 50 MA, REL-MR SERIES, THROUGH HOLE, NON LATCHING

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Current	Switching Voltage	Coil Voltage	Relay Type	Load - Max Switching	Coil Resistance	Operate Time	Release Time	Approval Agency	Contact Material	Contact Rating (Current)	Termination Style	Mounting Type	Contact Form
Phoenix Contact 2961121	85 °C	-40 °C	Non Latching	7 mA	250 VAC	24 VDC	General Purpose	1500 VA	3.39 kOhms	5 ms	2.5 ms	cULus, EAC, UR	Gold (Au), Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
Phoenix Contact 2961134	85 °C	-40 °C	Non Latching	3 mA	250 VAC	60 VDC	General Purpose	1500 VA	20.5 kOhms	5 ms	2.5 ms	cULus, EAC, UR	Gold (Au), Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
Phoenix Contact 2961150	85 °C	-40 °C	Non Latching	14 mA	250 VAC, 250 VDC	12 VDC	General Purpose		848 Ohms	5 ms	2.5 ms	cULus, EAC, UR	Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
Phoenix Contact 2961192	85 °C	-40 °C	Non Latching	17 mA	250 VAC, 250 VDC	24 VDC	General Purpose		1440 Ohms	7 ms	3 ms	cULus, EAC, UR	Silver Nickel (AgNi)	8 A	PC Pin	Through Hole	DPDT (2 Form C)
Phoenix Contact 2961163	85 °C	-40 °C	Non Latching	14 mA	250 VAC, 250 VDC	12 VDC	General Purpose		848 Ohms	5 ms	2.5 ms	cULus, EAC, UR	Gold (Au), Silver Tin Oxide (AgSnO)	6 A	PC Pin	Through Hole	SPDT (1 Form C)
