87234-9

Active

TE Connectivity AMP Connectors

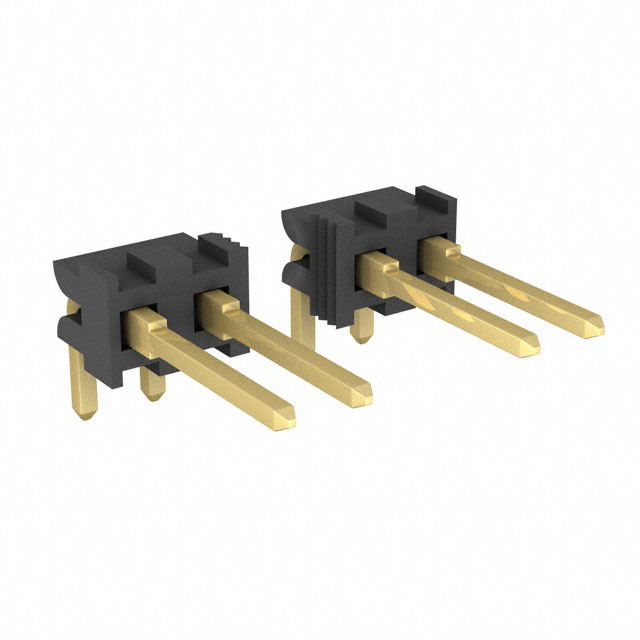

CONN HEADER R/A 10POS 3.18MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 10POS 3.18MM

Technical Specifications

Parameters and characteristics for this part

Specification	87234-9

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.5 mm
Insulation Height	0.138 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER R/A 10POS 3.18MM

Part	Contact Finish - Post	Mounting Type	Number of Positions	Fastening Type	Insulation Color	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Style	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Number of Rows	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
TE Connectivity AMP Connectors 87234-9	Gold	Through Hole, Right Angle	10	Push-Pull	Black	Glass Filled, Nylon, Polyamide (PA)	0.11 in	2.79 mm	3.5 mm	0.138 in	Header	Flash	All	Solder	Square	-65 ░C	105 ░C	Gold	Phosphor Bronze	Board to Board, Cable	Unshrouded	0.318 "	8.08 mm	Male Pin	1	3 A	30 Áin	0.76 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 10 position 0.125" (3.18mm)

Technical documentation and resources

No documents available
