G3B25AB Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Color - Actuator/Cap	Switch Function	Mounting Type	Voltage Rating - AC	Features	Termination Style	Type	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - DC	Actuator Type	Current Rating	Actuator Marking
NKK Switches G3B25AB-XB	50000 Cycles	50000	White	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Button Round	0.4 VA	No Marking
NKK Switches G3B25AB-S	50000 Cycles	50000	Gray	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Plunger Round	0.4 VA	No Marking
NKK Switches G3B25AB-XA	50000 Cycles	50000	Black	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Button Round	0.4 VA	No Marking
NKK Switches G3B25AB-S-XC	50000 Cycles	50000	Red	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Button Round	0.4 VA	No Marking
NKK Switches G3B25AB-XC	50000 Cycles	50000	Red	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Button Round	0.4 VA	No Marking

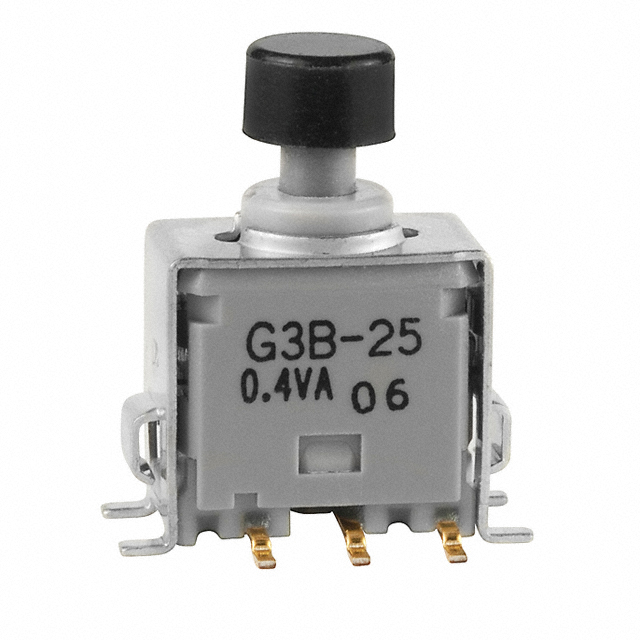

NKK Switches G3B25AB-S-YA	50000 Cycles	50000	Black	On-Mom	Surface Mount	28 V	Process Sealed	Gull Wing	Standard	DPDT	85 °C	-30 °C	28 V	Button Round	0.4 VA	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
