6791222332F

Active

DIALIGHT

9MM HG/G PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HG/G PMI-12VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

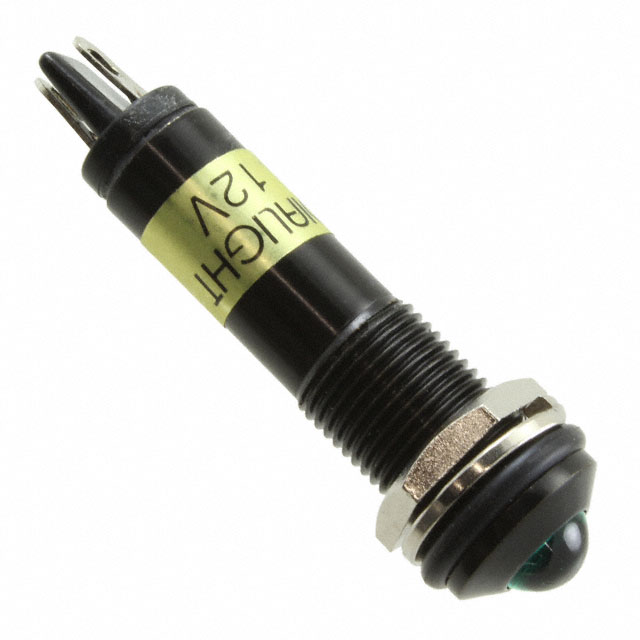

LED Panel Indicator Green 12V 30mA Solder Lug

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6791222332F	6791222 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Lens Size [diameter]	6 mm	6 mm
Lens Style	Round with Domed Top	Round with Domed Top
Millicandela Rating	5870 mcd	5870 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 24 V
Wavelength - Peak	-	525 nm

9MM HG/G PMI-12VDC W/O-RING

Part	Termination Style	Millicandela Rating	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Type	Current	Panel Cutout Shape	Lens Size [diameter]	Ingress Protection	Lens Style	Lamp Color	Ratings	Voltage	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Viewing Angle	Wavelength - Peak
DIALIGHT 6791222332F	Solder Lug	5870 mcd	0.37 in	9.4 mm	LED	30 mA	Round	6 mm	IP66, NEMA 4X	Round with Domed Top	Green	DC	12 V
DIALIGHT 6791222322F	Solder Lug	25000 mcd			LED	30 mA	Round	6 mm	IP66, NEMA 4X	Round with Domed Top	Green	DC	6 V	0.37 in	9.35 mm	30 °	525 nm
DIALIGHT 6791222342F	Solder Lug	25000 mcd			LED	30 mA	Round	6 mm	IP66, NEMA 4X	Round with Domed Top	Green	DC	24 V	0.37 in	9.35 mm	30 °	525 nm
